Engine Mount Replacement - Left

Engine Mount Replacement - Left Side

Removal Procedure

1. Remove the front suspension crossmember. Refer to Front Suspension Crossmember Replacement ().

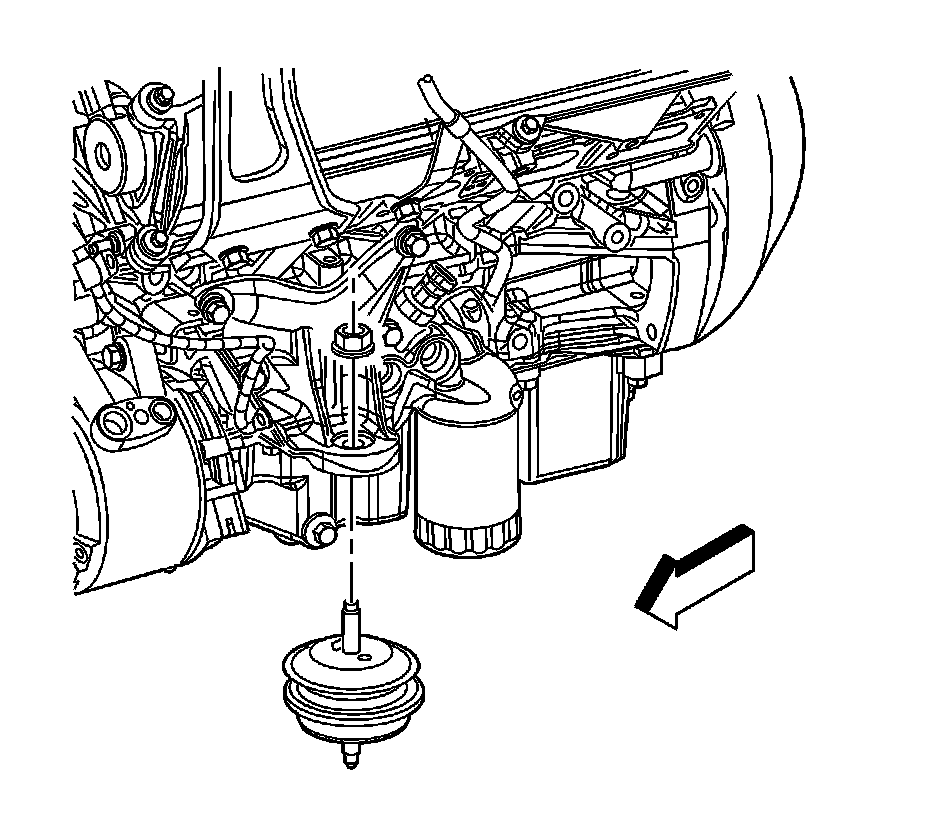

2. Remove the engine mount-to-engine mount bracket nut.
3. Remove the engine mount from the engine mount bracket.




4. Remove the engine mount heat shield from the engine mount.

Installation Procedure




1. Install the engine mount heat shield to the engine mount.

Note: When installing the engine mount be sure to have the locating dowel in the correct position.

2. Position the engine mount to the engine mount bracket.





Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the engine mount-to-engine mount bracket nut and tighten to 58 Nm (43 lb ft).
4. Install the front suspension crossmember. Refer to Front Suspension Crossmember Replacement ().
