Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics
8-Way Power Seat Controls

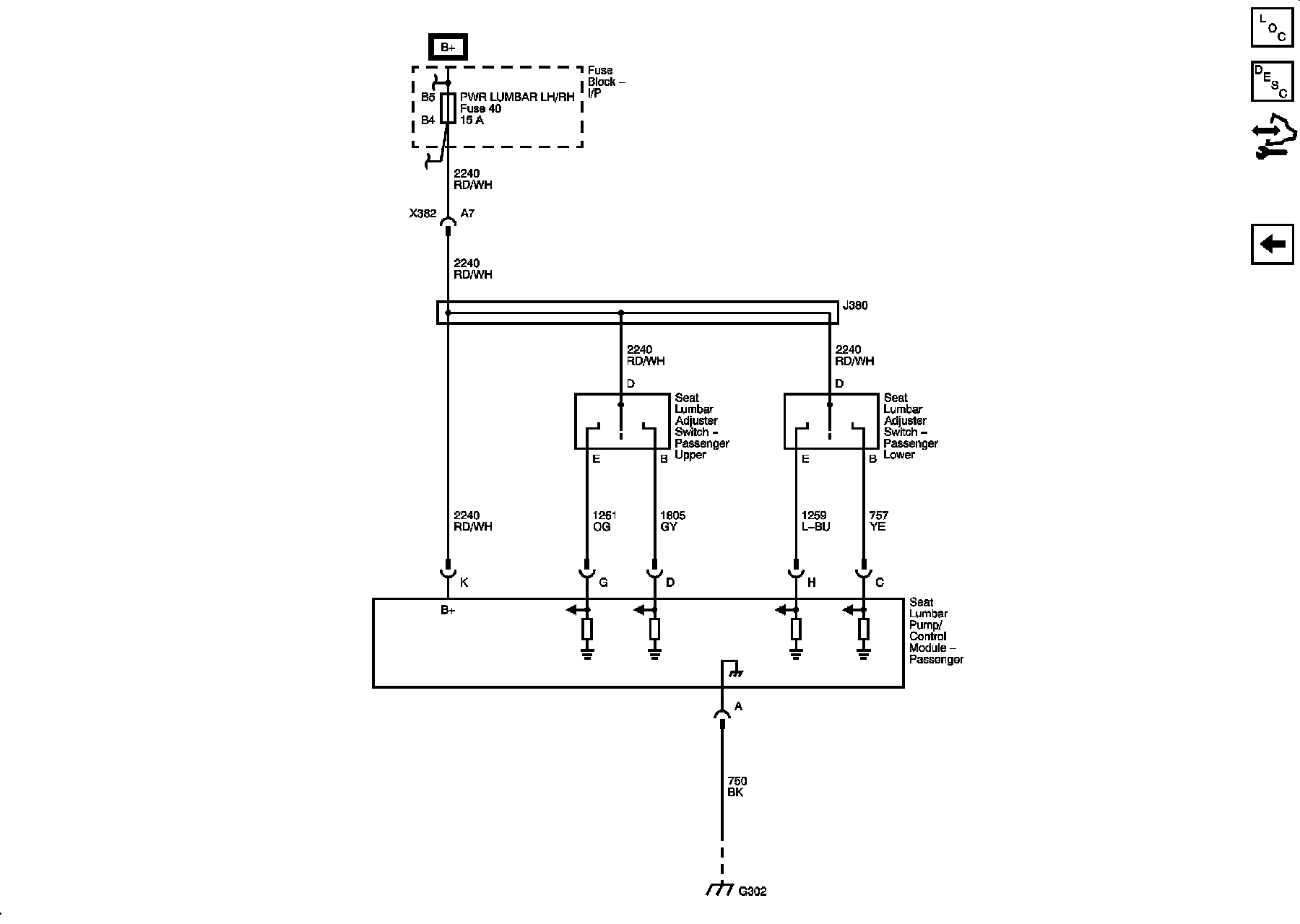

Lumbar Support
