Home
>>
Cadillac
>>
2009
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Turn Signal Lamp - Left Front
Turn Signal Lamp - Left Front

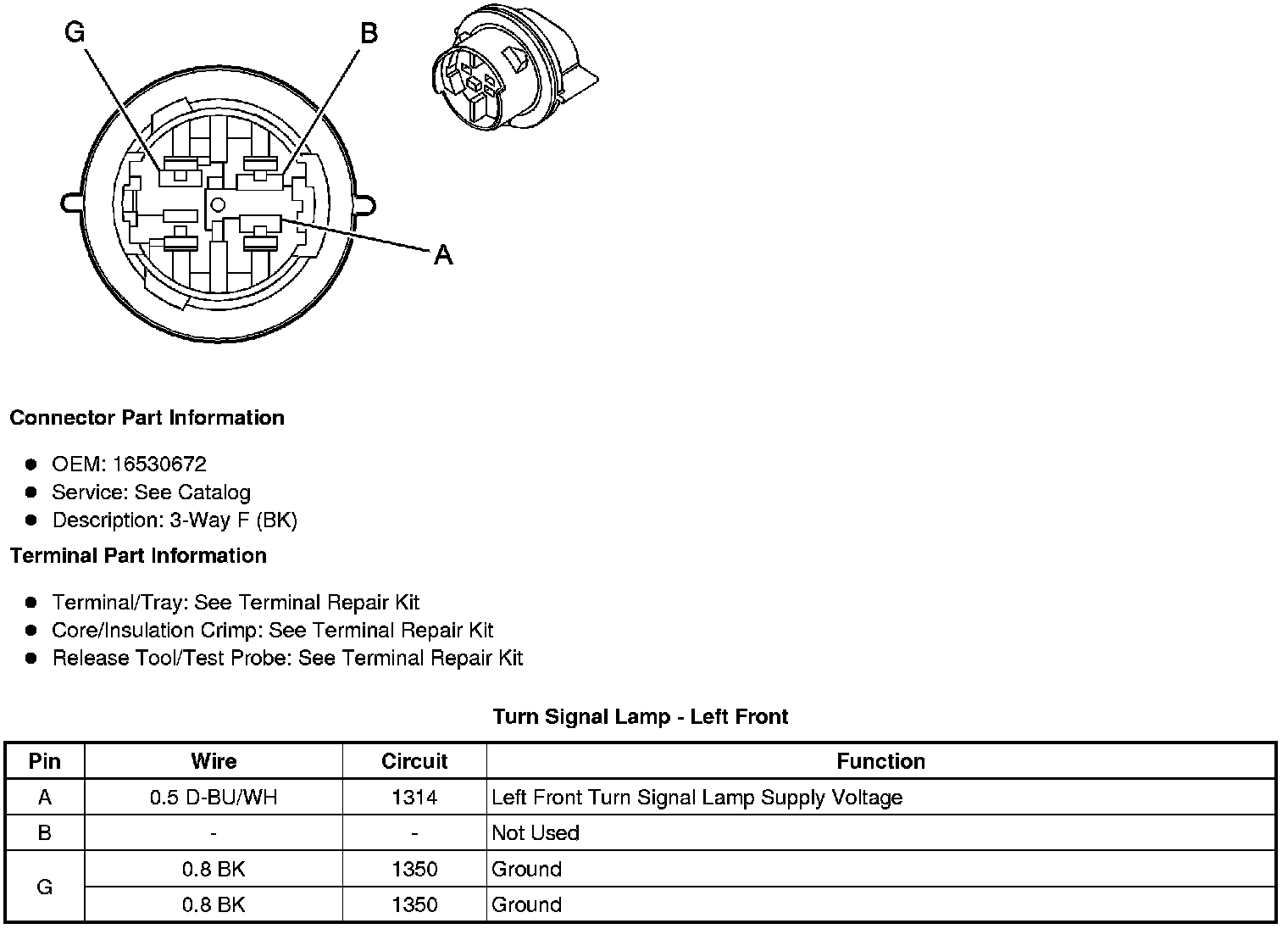

Component Connector End Views
Turn Signal Lamp
- Left Front
