Home
>>
Cadillac
>>
2009
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Splices By Number
>>
JX100 - JX199
>>
JX101
JX101

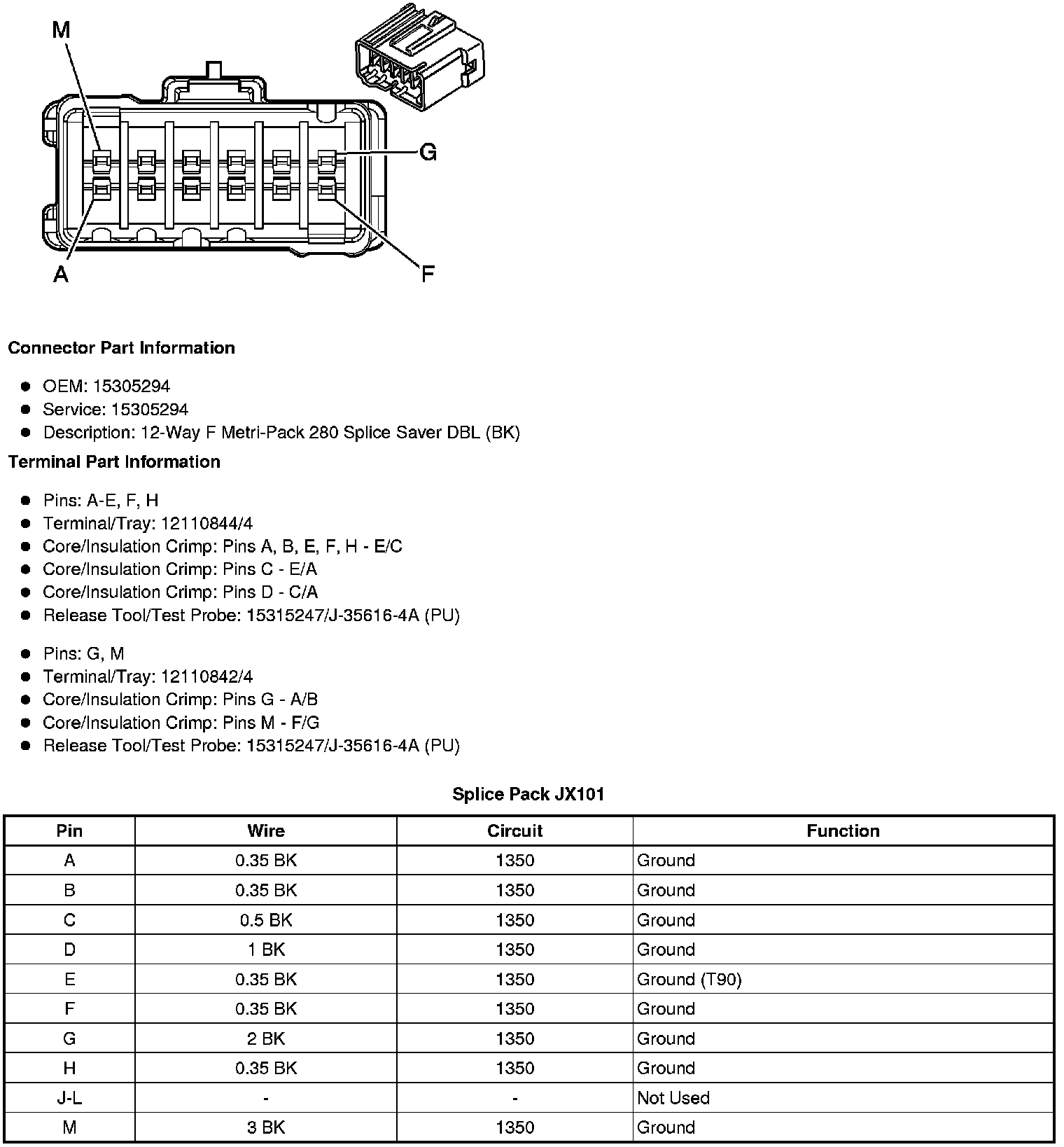

Splice Pack Connector End Views
Splice Pack JX101
