Power Seat Motor
>>
Seat Adjuster Motor Assembly - Driver X1
Seat Adjuster Motor Assembly - Driver X1

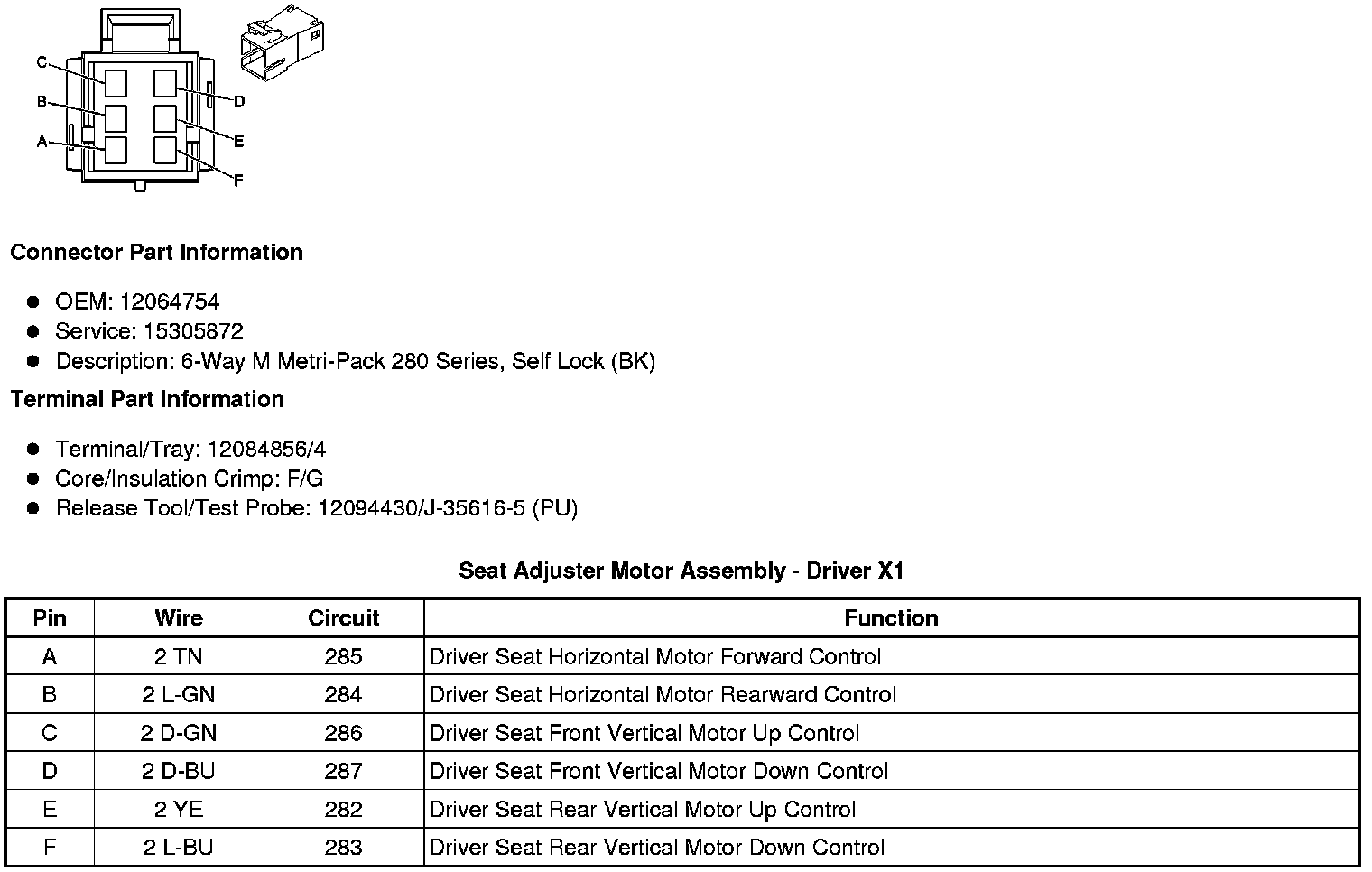

Component Connector End Views
Seat Adjuster Motor Assembly - Driver X1
