Supercharger Air Inlet Pressure Sensor (LC3)

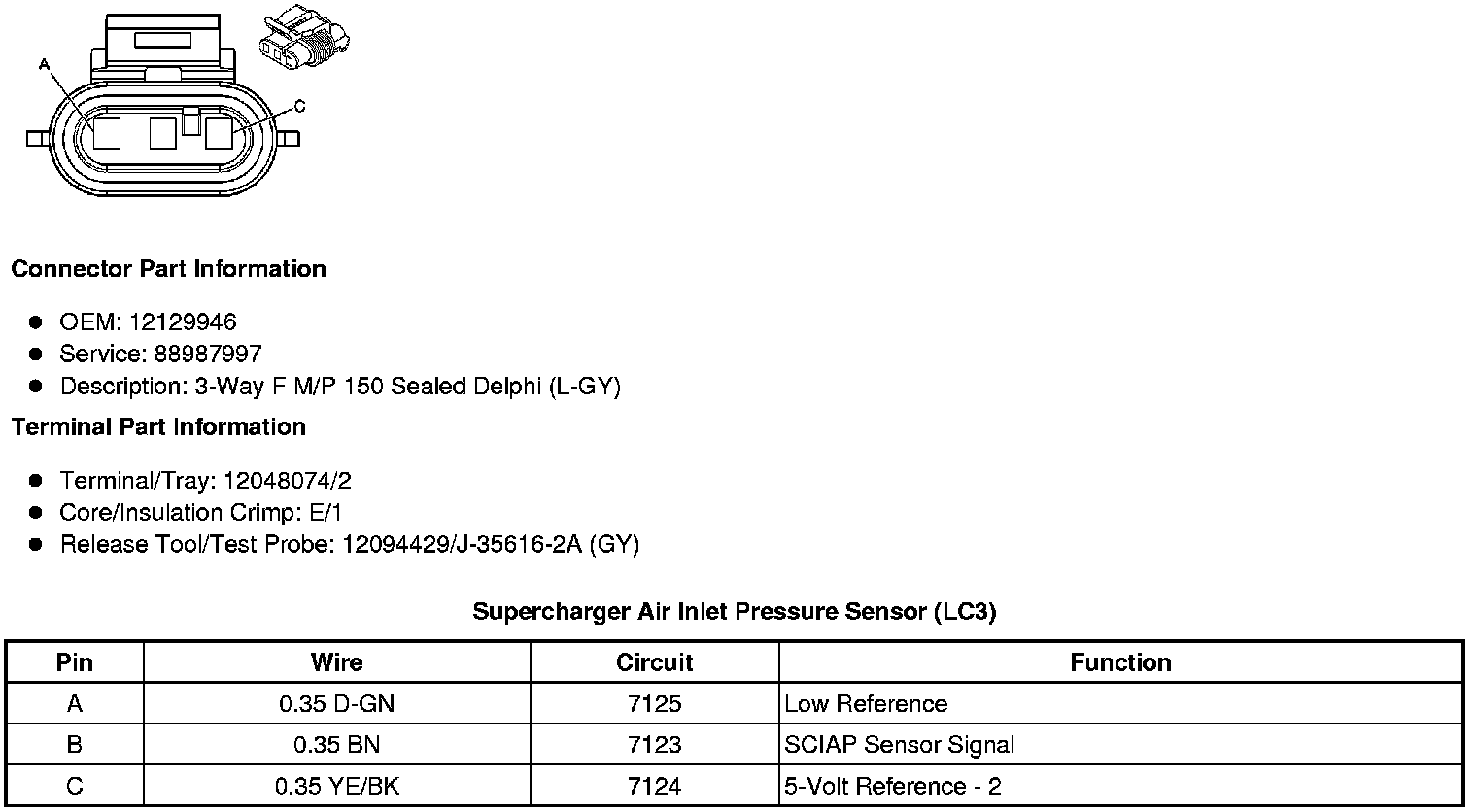

Component Connector End Views
Supercharger Air Inlet Pressure Sensor (LC3)
