Rear Compartment Courtesy Lamp - Right
Rear Compartment Courtesy Lamp - Right

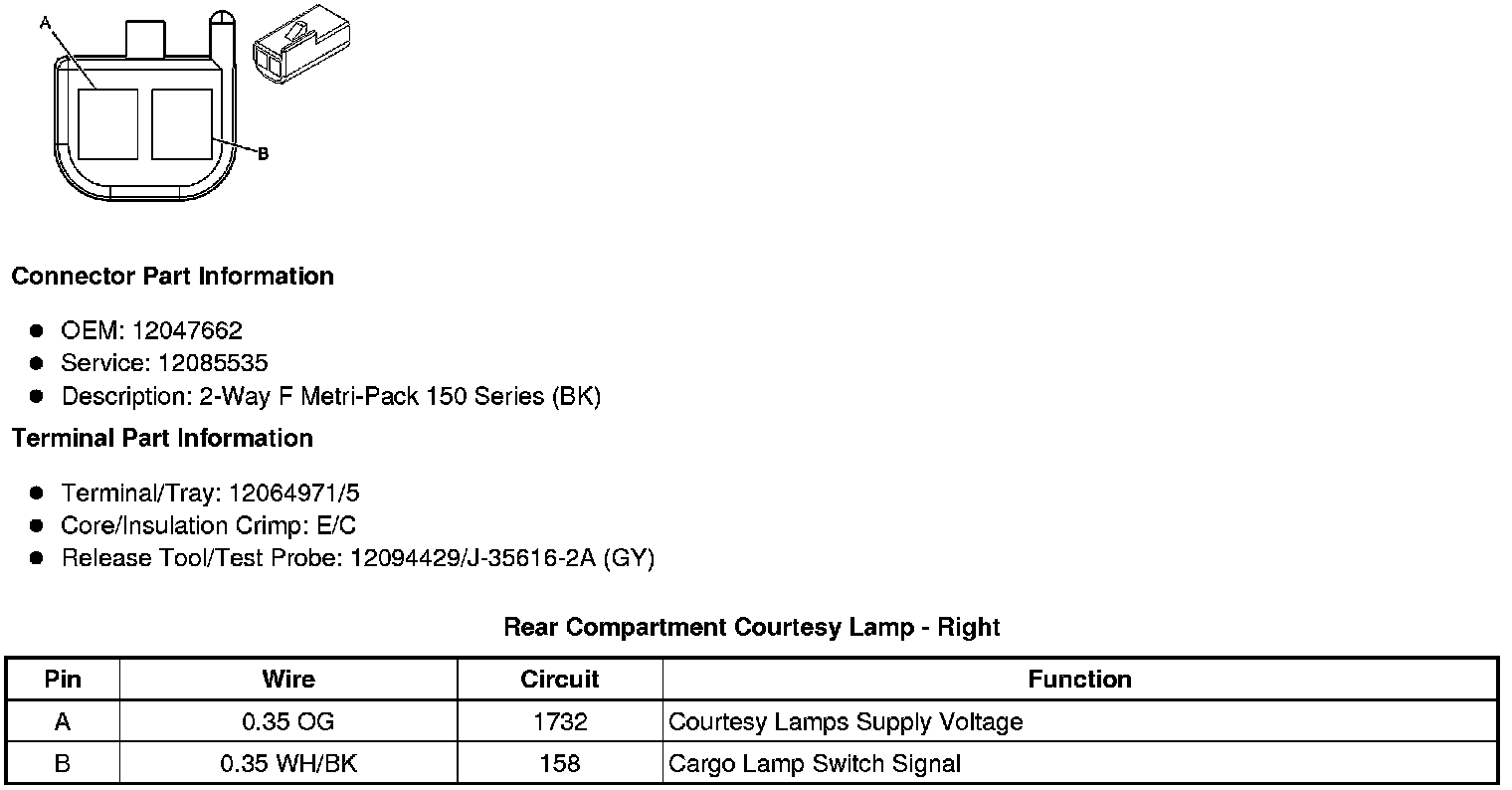

Component Connector End Views
Rear Compartment
Courtesy Lamp
- Right
