Hood Rear Seal Replacement

Hood Rear Seal Replacement

Removal Procedure




1. Open the hood.

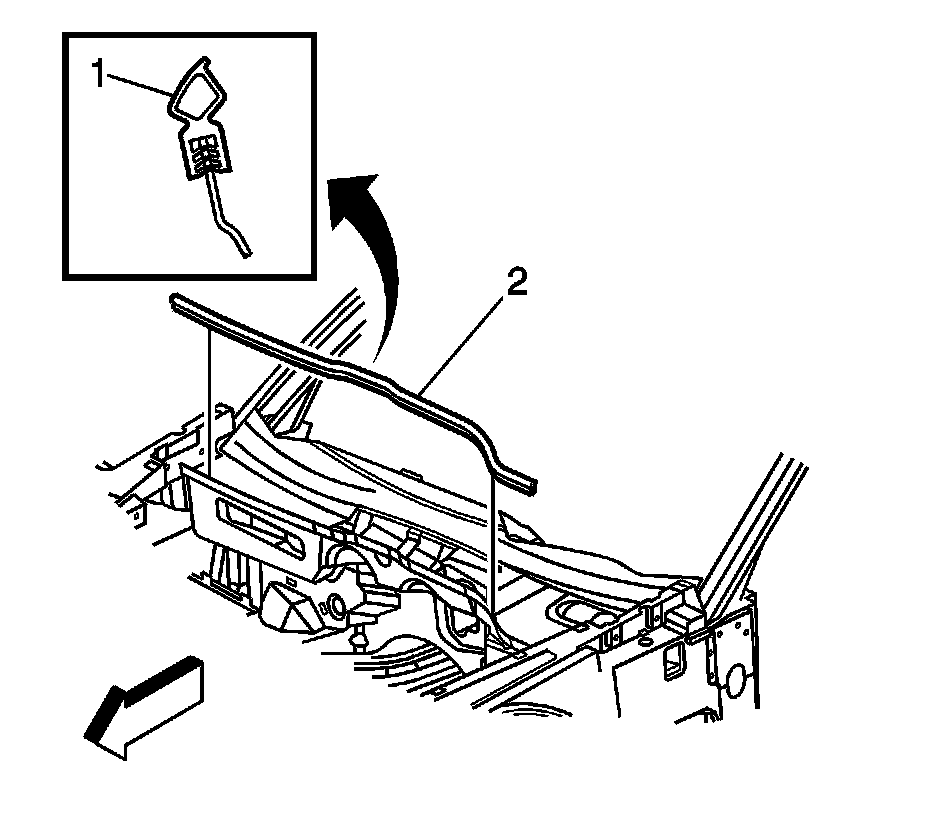

2. Remove the rear hood seal (2) from the lower plenum.

Installation Procedure




1. Position the seal (2) to the lower plenum.
2. Align the top lip of the seal face rearward (1) for proper installation.
3. Press firmly to secure the seal to the lower plenum.
4. Close the hood.
