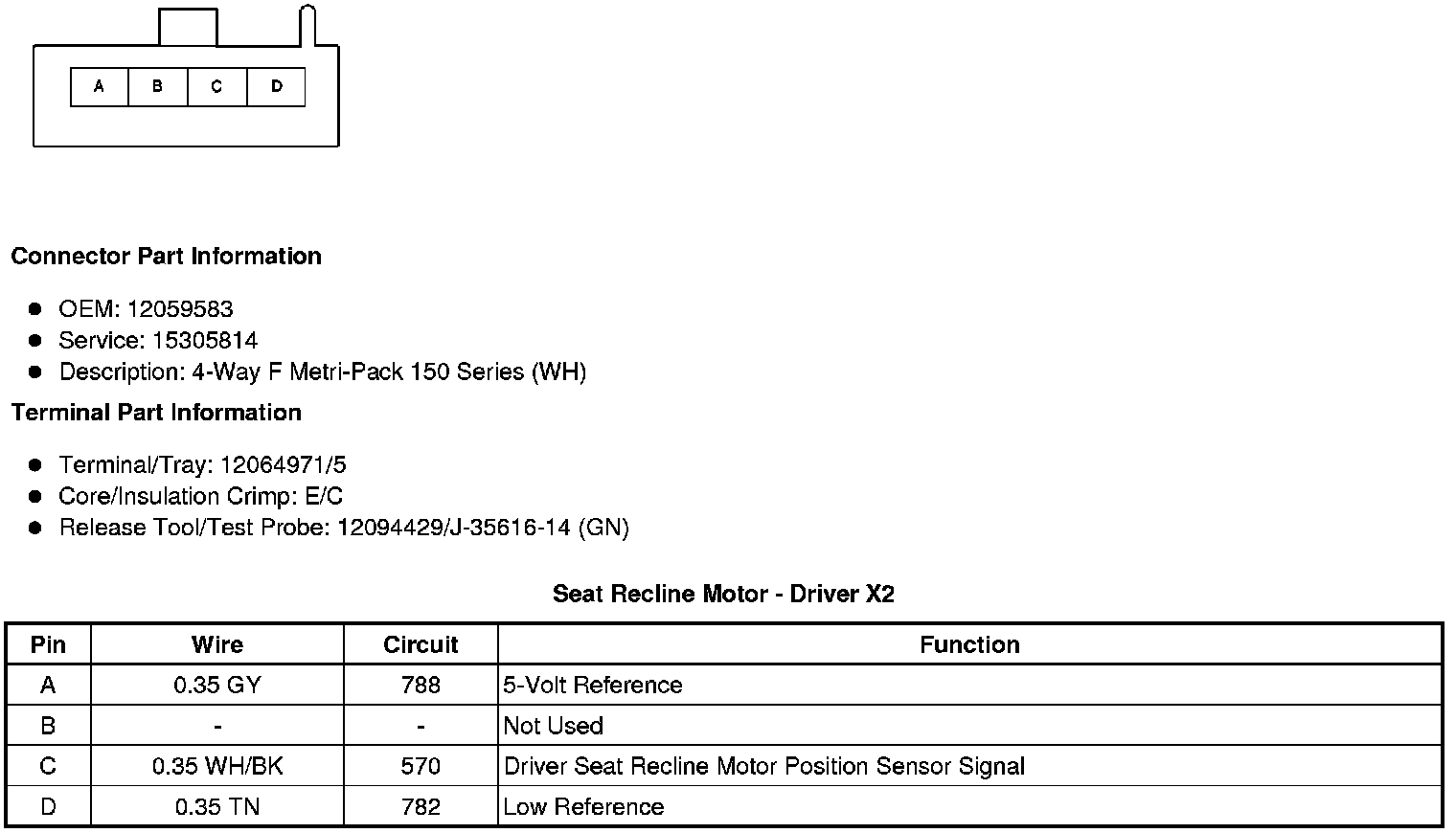

Seat Recline Motor - Driver X2
Seat Recline Motor - Driver X2
Component Connector End Views
Seat Recline Motor - Driver X2
