Structure Identification
Structure Identification
Structure Identification

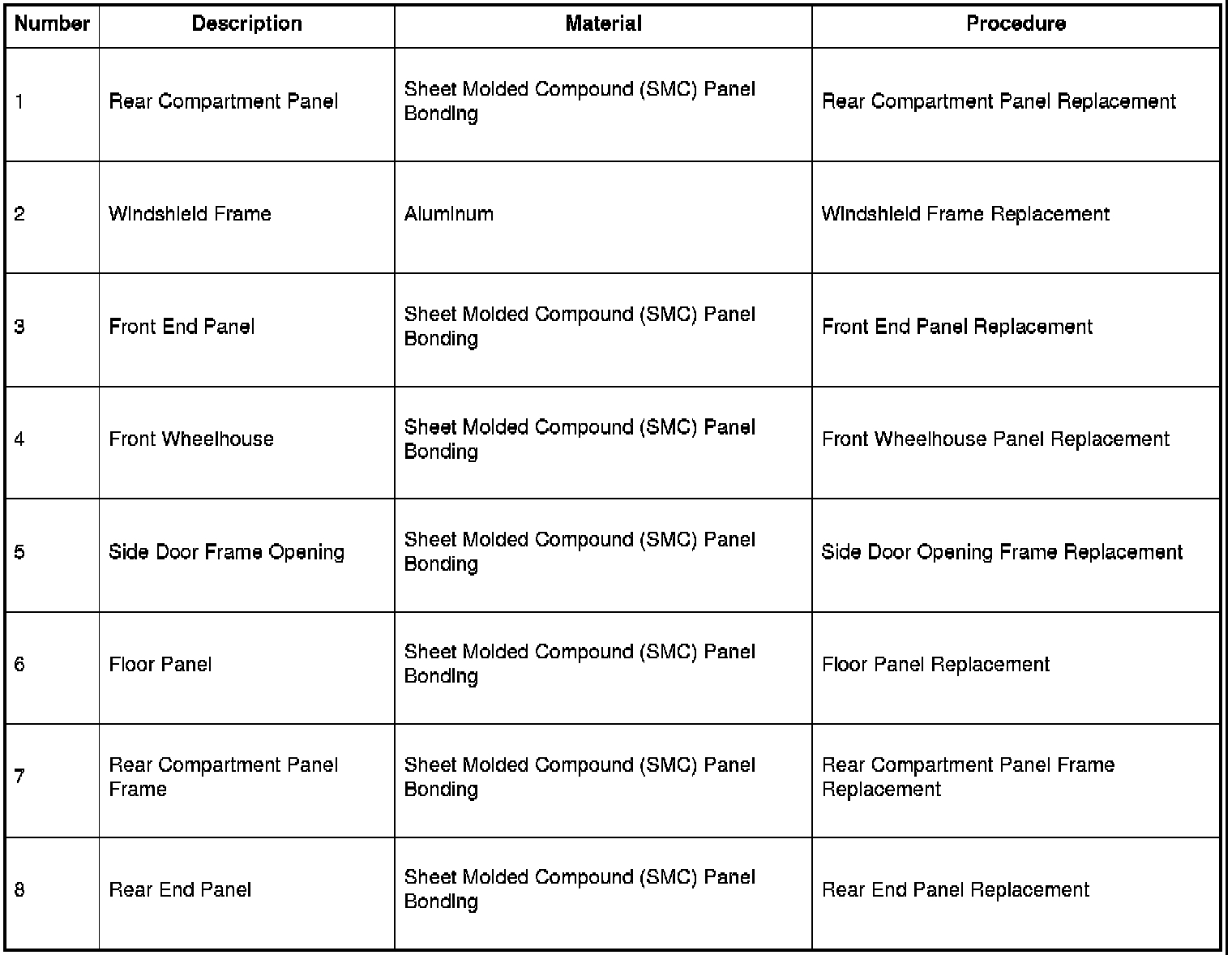

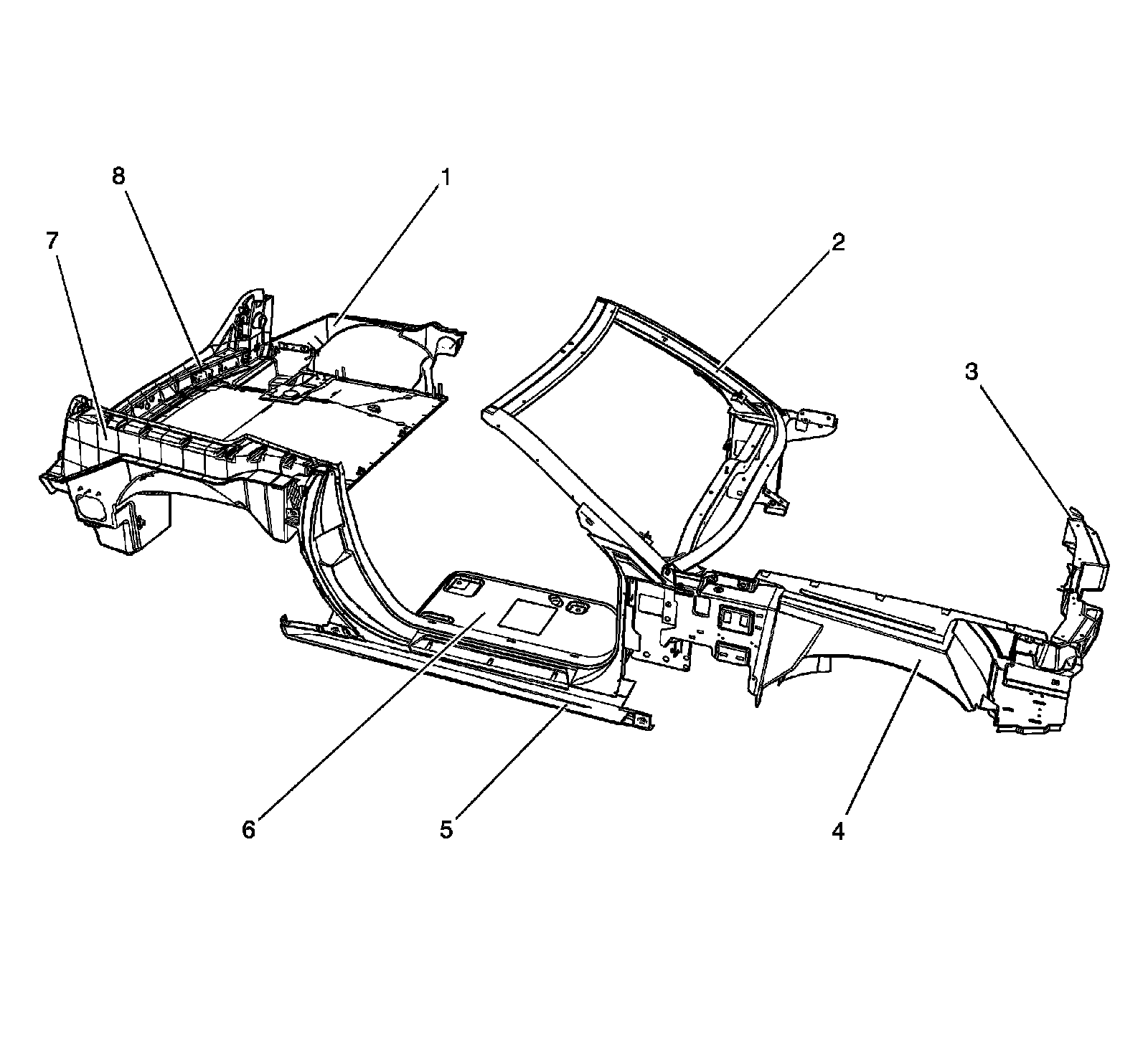

Inner Panel Indentification
Figure
1:

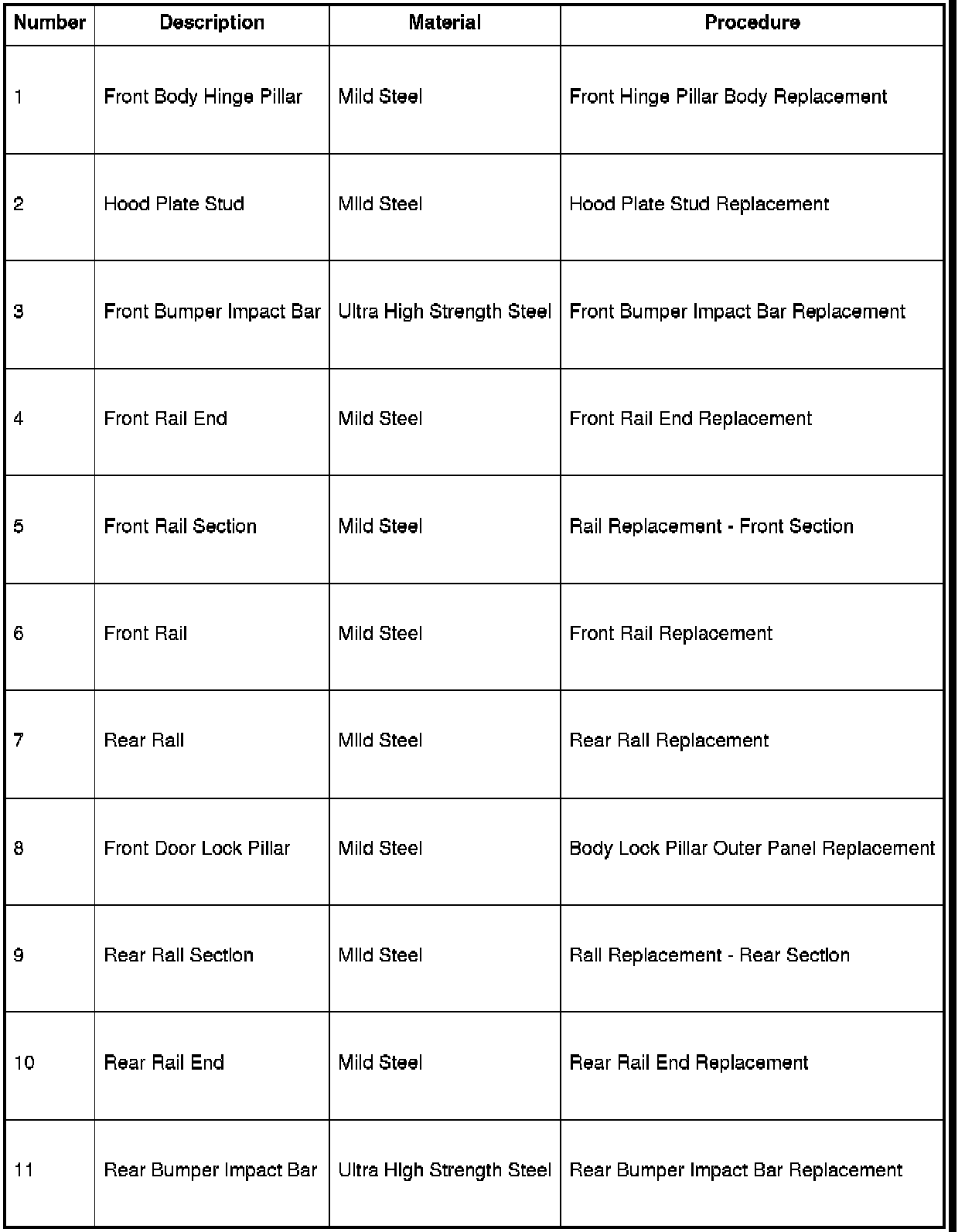

Frame
Identification
