Home
>>
Cadillac
>>
2009
>>
STS RWD V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Keyless Entry
Keyless Entry
Remote Function Schematics

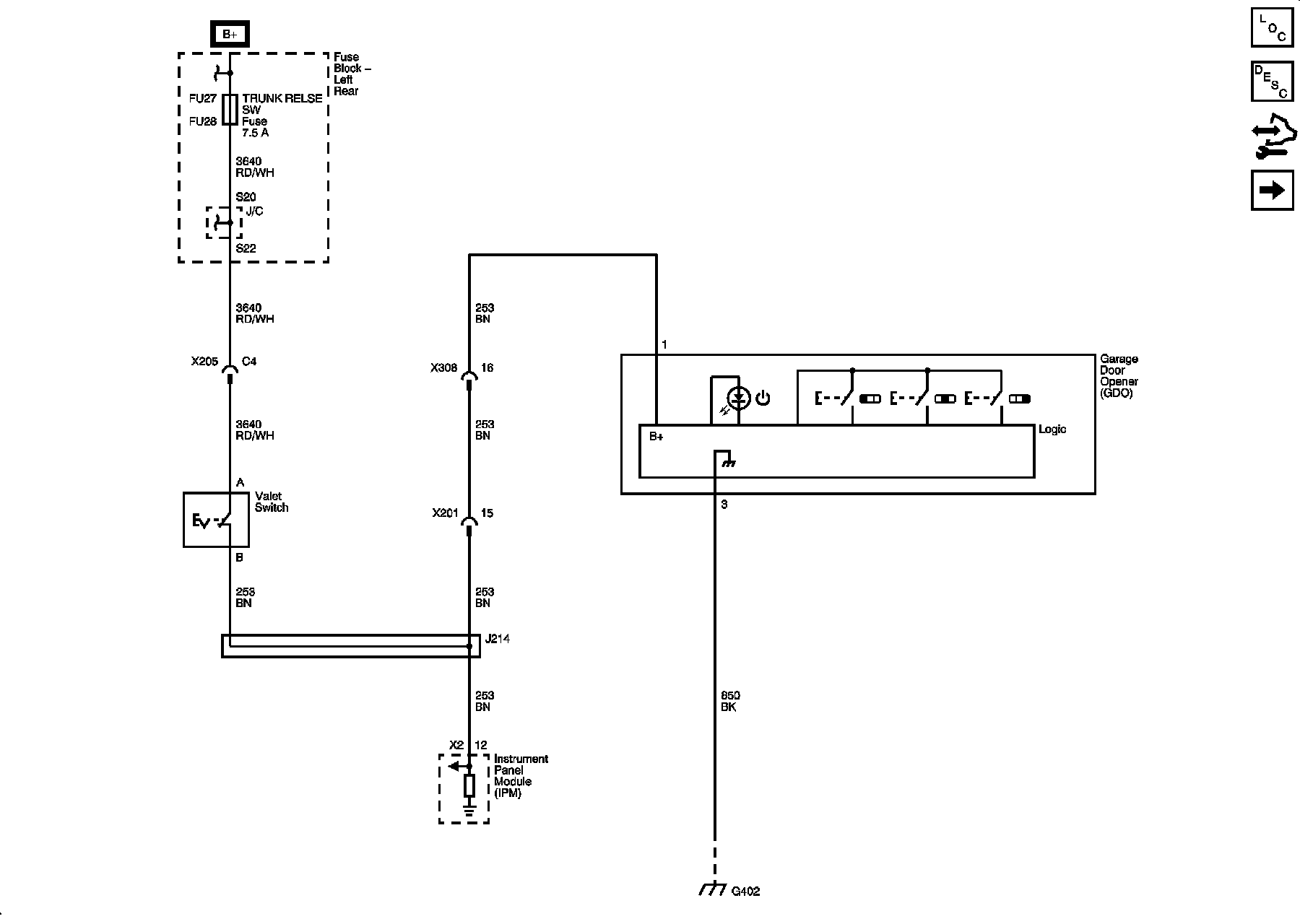

Garage Door Opener

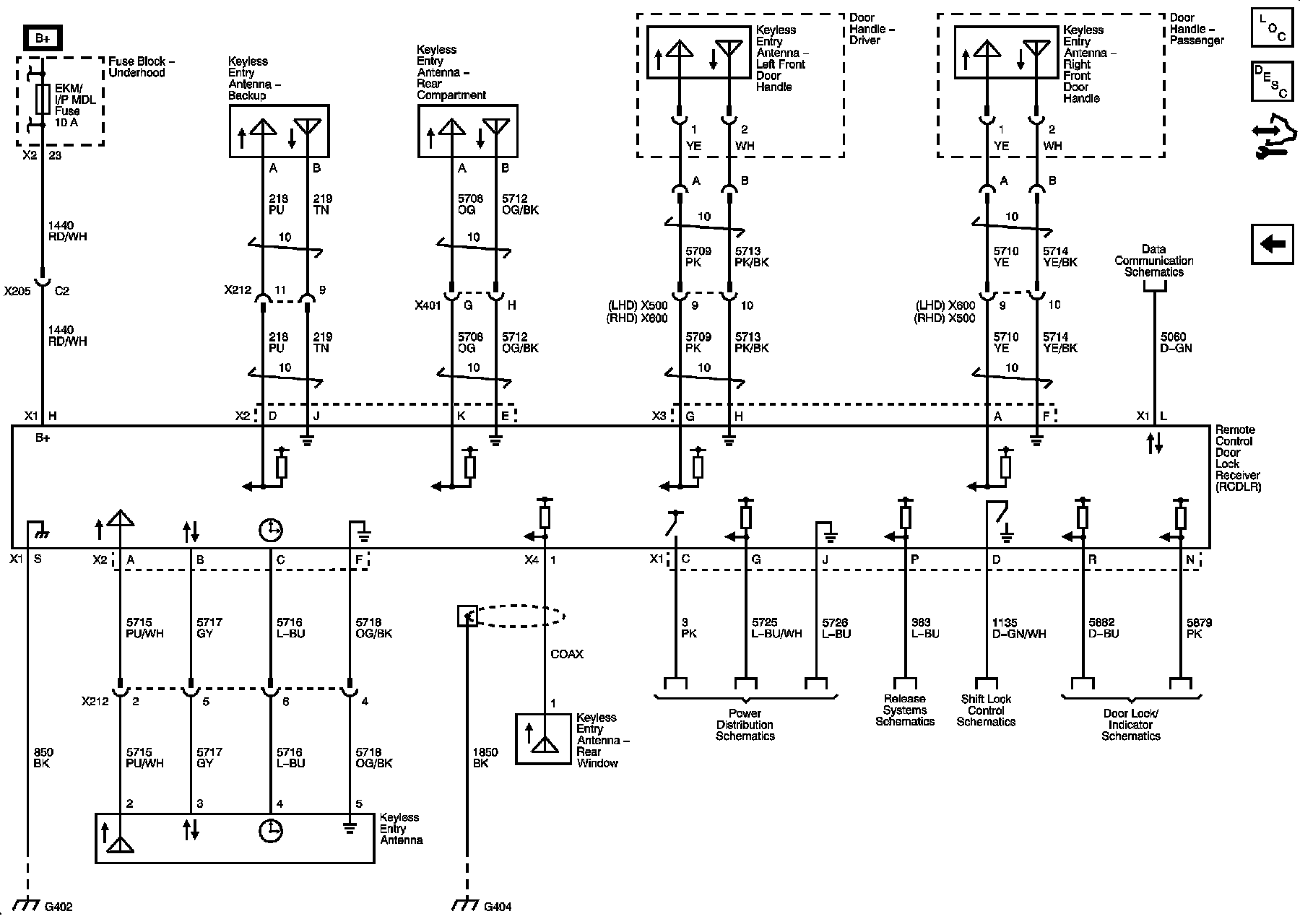

Keyless Entry Module
Power, Grounds, Antennas and Switches
