Cadillac
>>
2009
>>
STS AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Splices By Number
>>
JX400 - JX499
>>

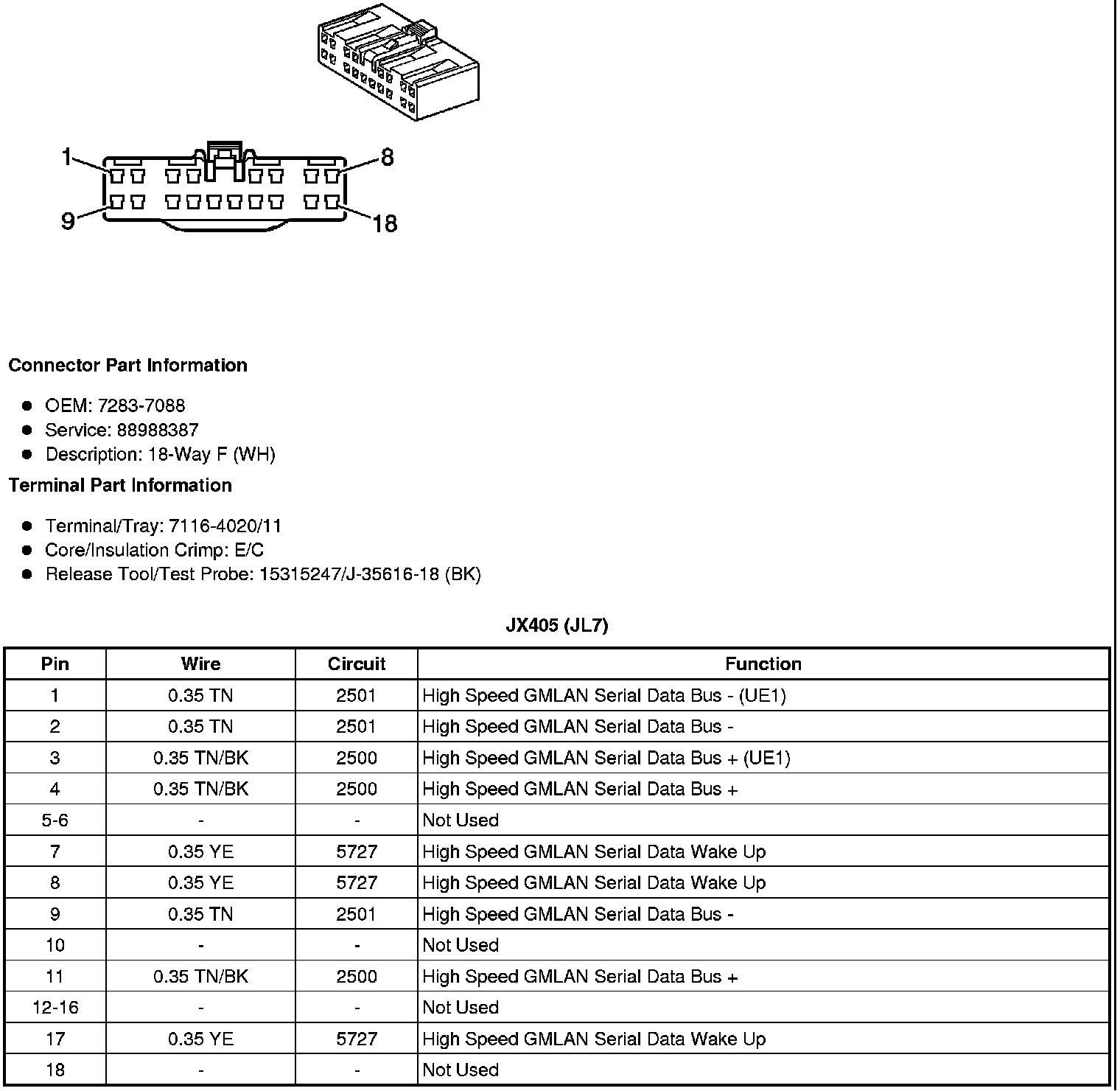

JX405
JX405
Splice Pack Connector End Views
JX405 (JL7)
