Cadillac
>>
2009
>>
STS AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Splices By Number
>>
JX300 - JX399
>>
JX303
JX303

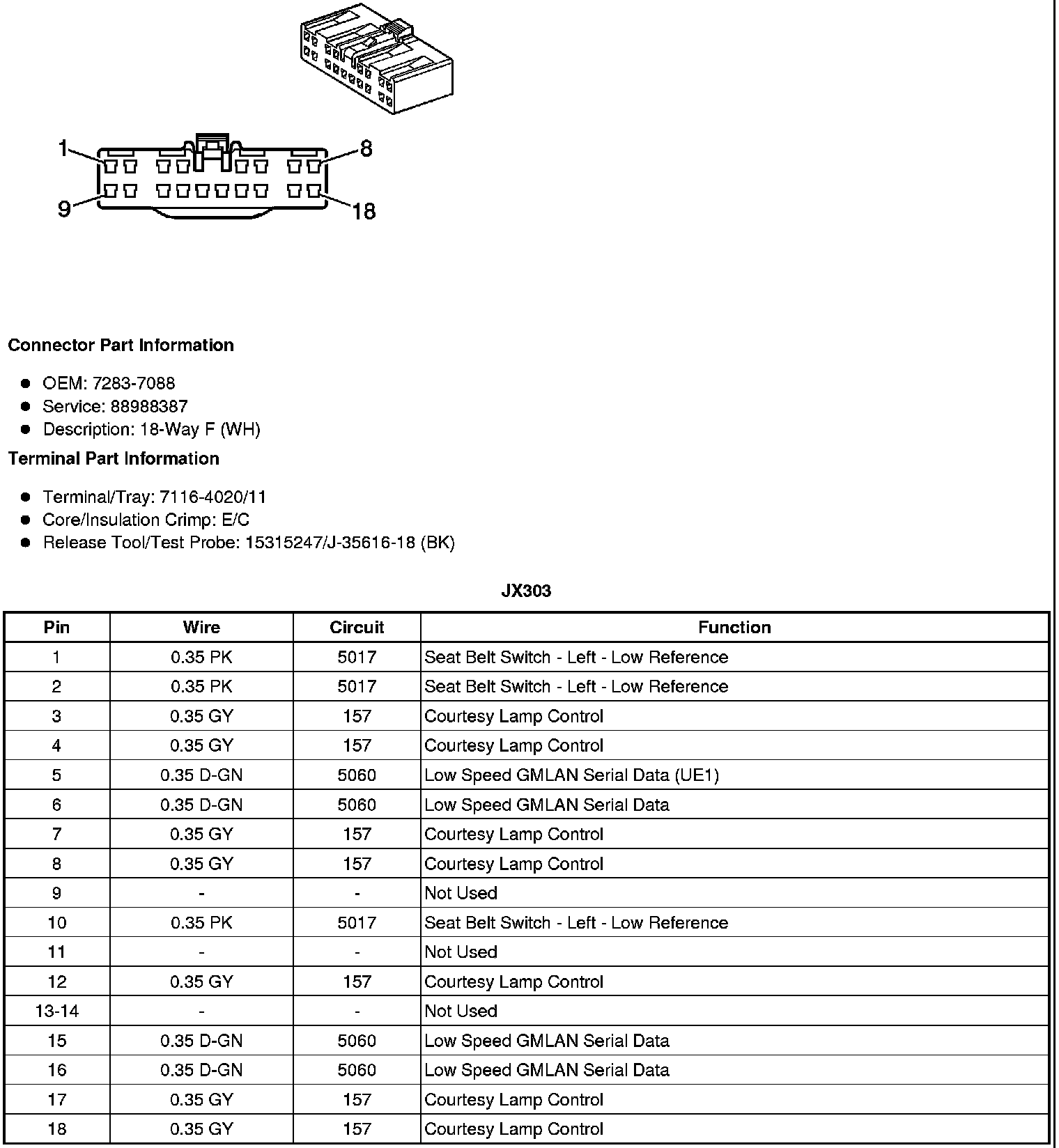

Splice Pack Connector End Views
JX303
