Home
>>
Cadillac
>>
2009
>>
STS AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X318
X318

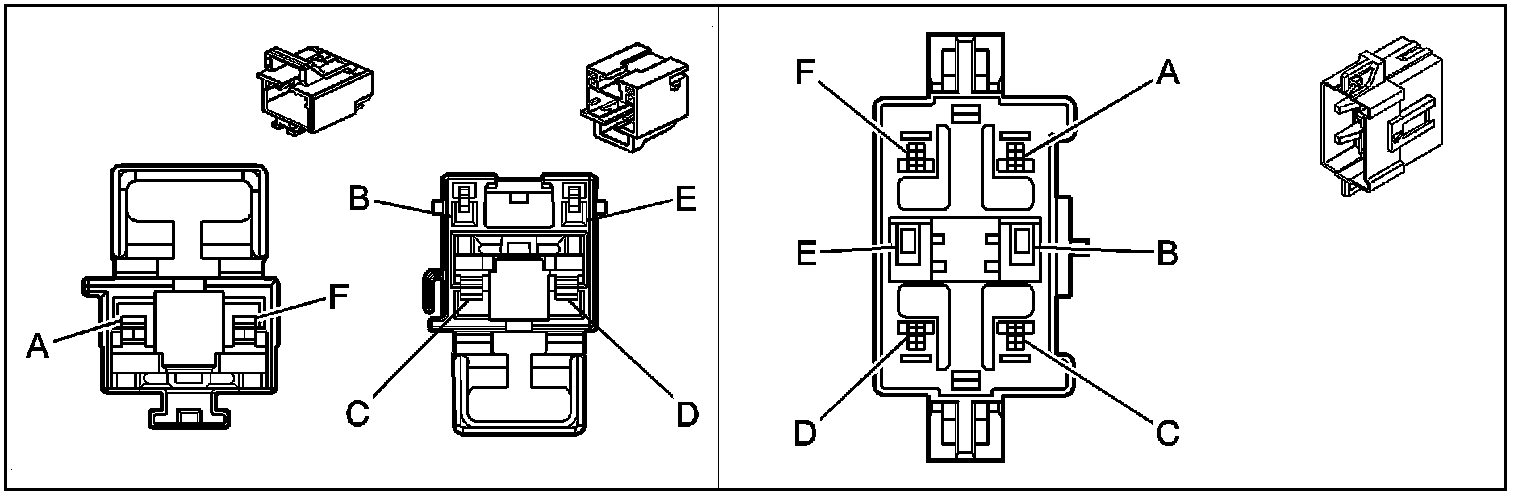

Inline Harness Connector End Views

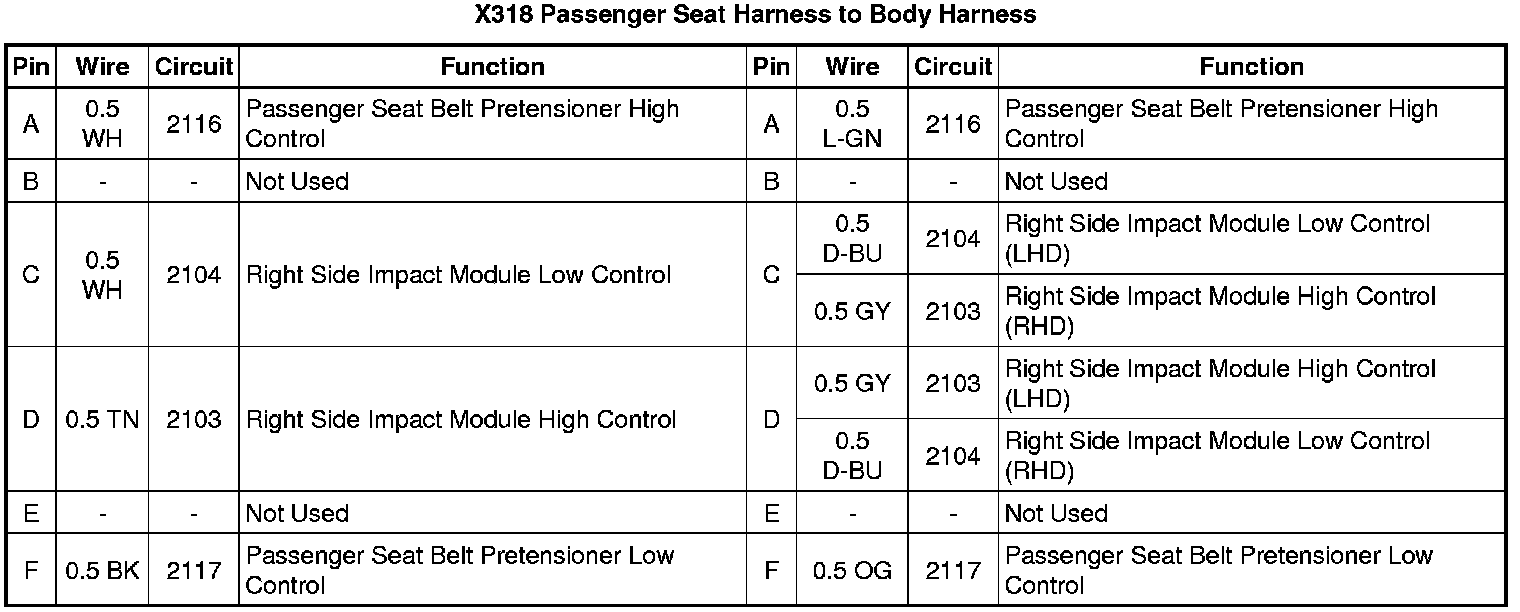

X318 Passenger Seat Harness to Body Harness
