X216
X216

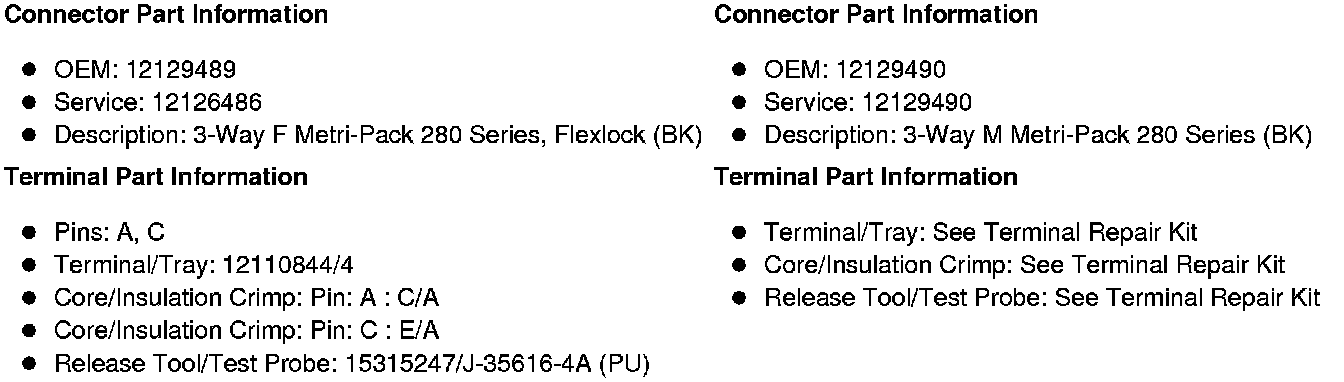

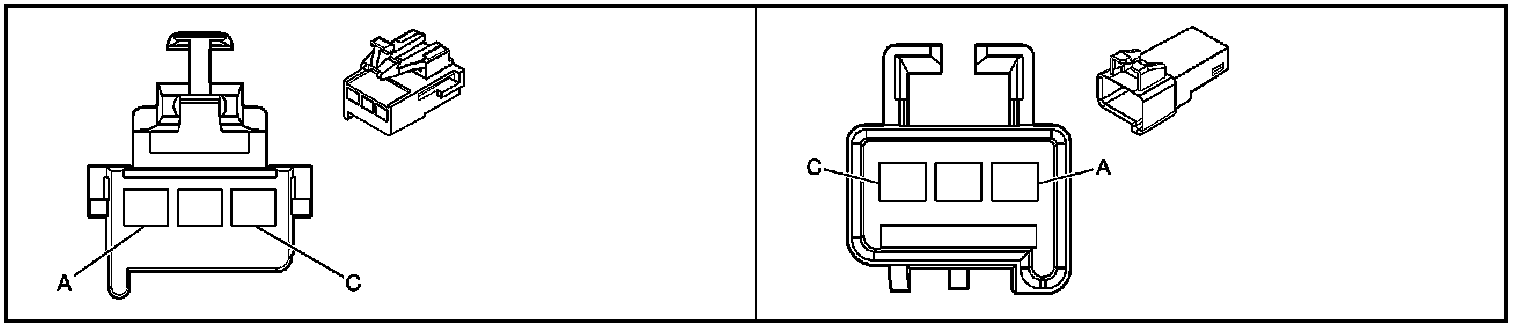

Inline Harness Connector End Views
X216 Console Harness to
Auxiliary Power Outlet
- Rear Ashtray Harness
