X126

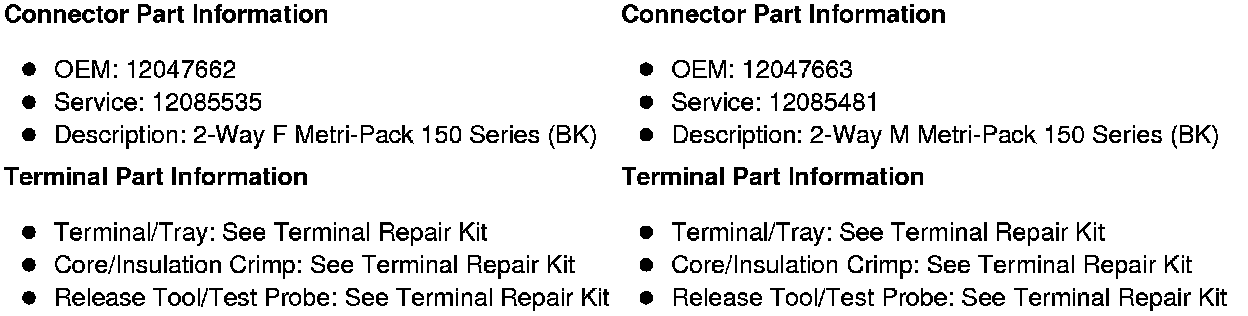

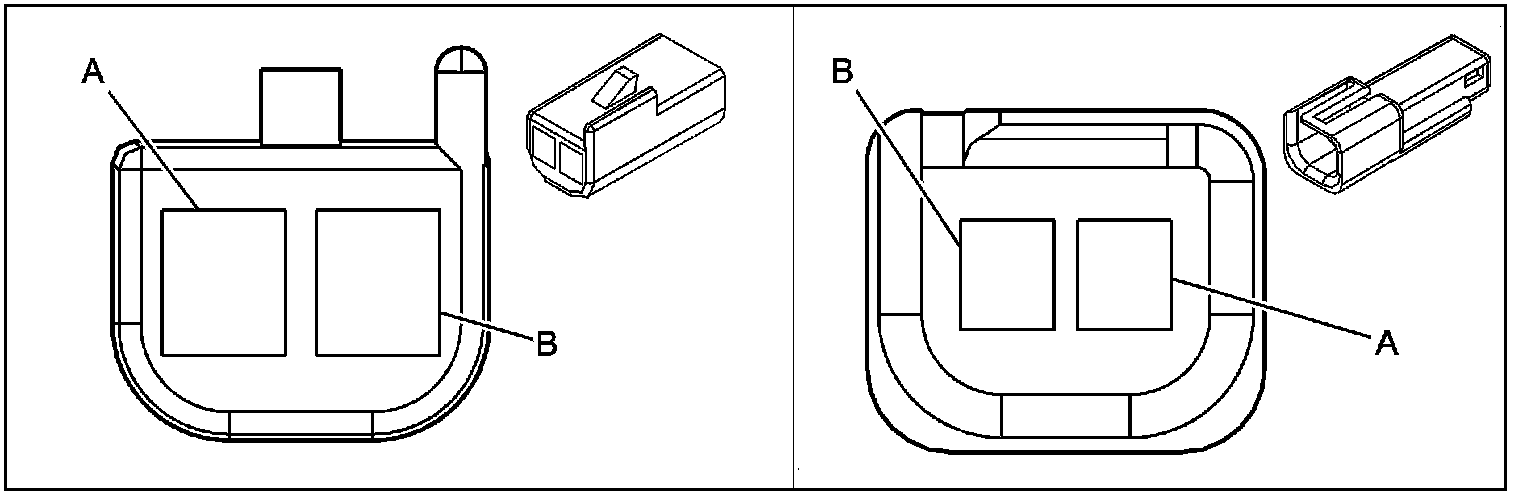

Inline Harness Connector End Views

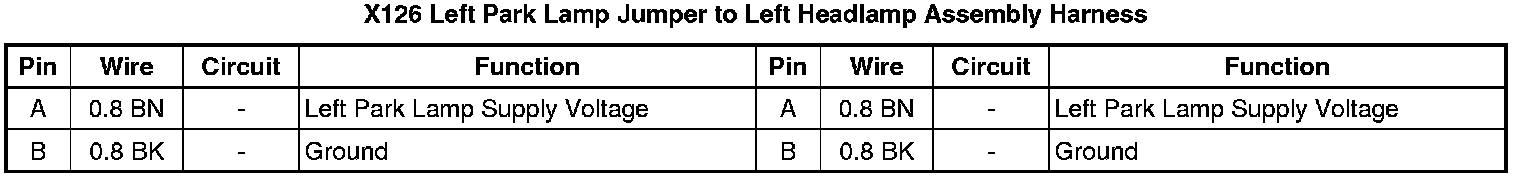

X126 Left Park Lamp Jumper to Left Headlamp Assembly Harness
