Home >> Cadillac >> 2009 >> STS AWD V8-4.6L >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Reinforcement >> Service and Repair >> Rear Energy Absorber Replacement

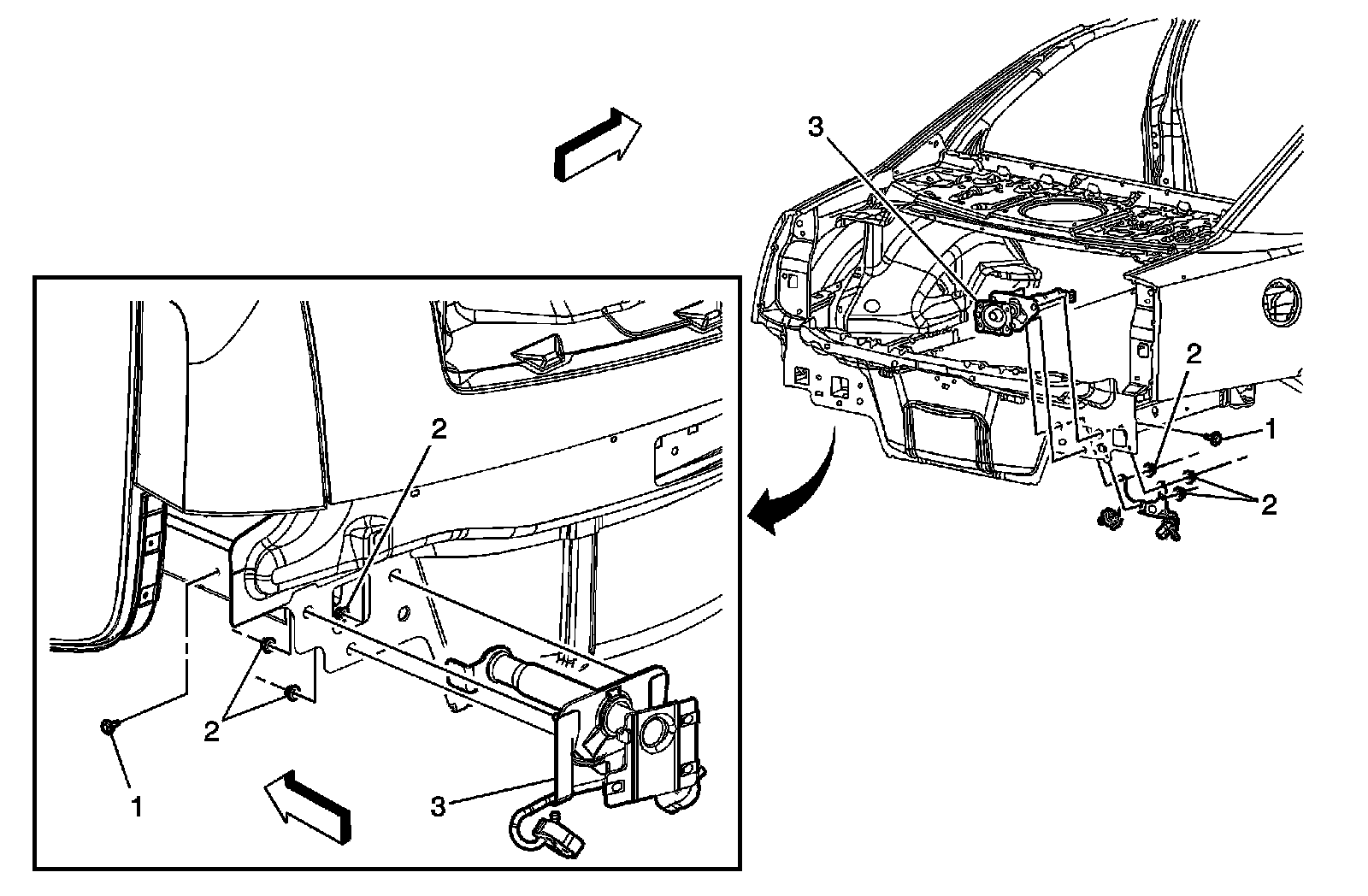

Rear Energy Absorber Replacement


Rear Energy Absorber Replacement

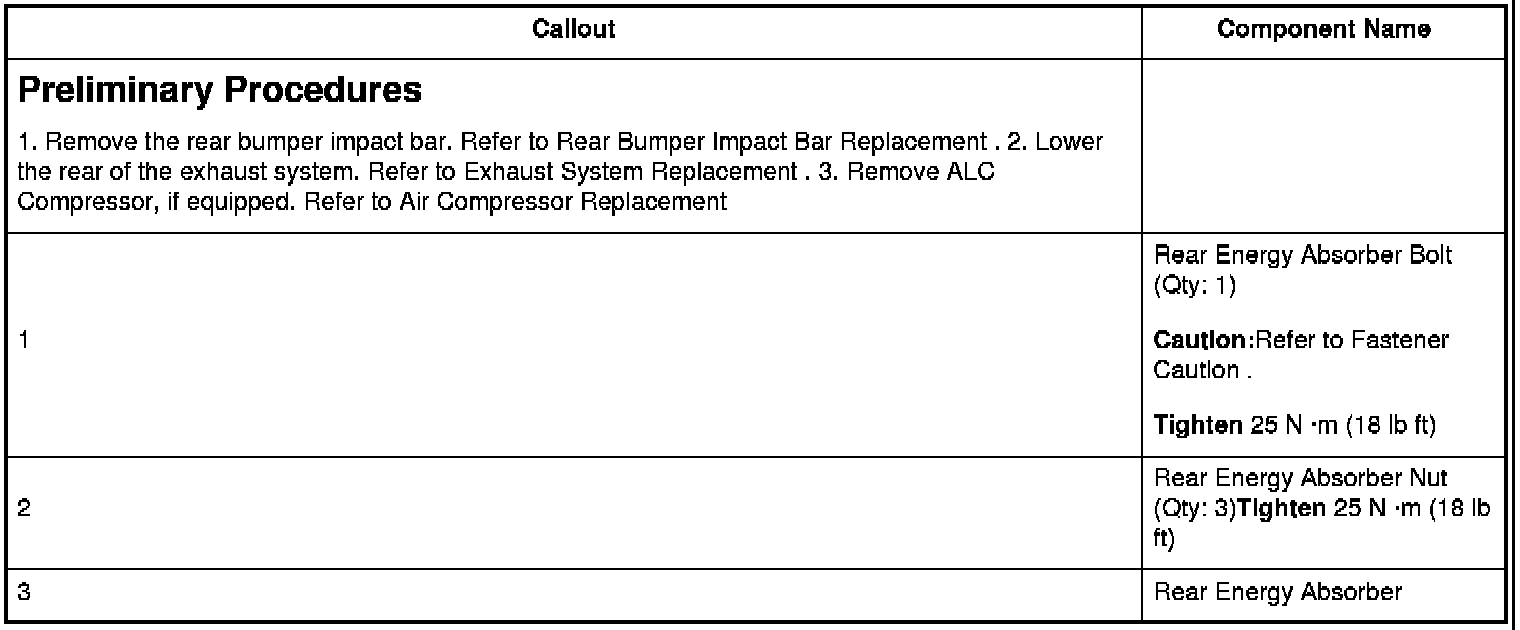

Preliminary Procedures

Caution:Refer to Fastener Caution.
TightenTighten
