Home
>>
Cadillac
>>
2009
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
Backup Lamp
Component Connector End Views

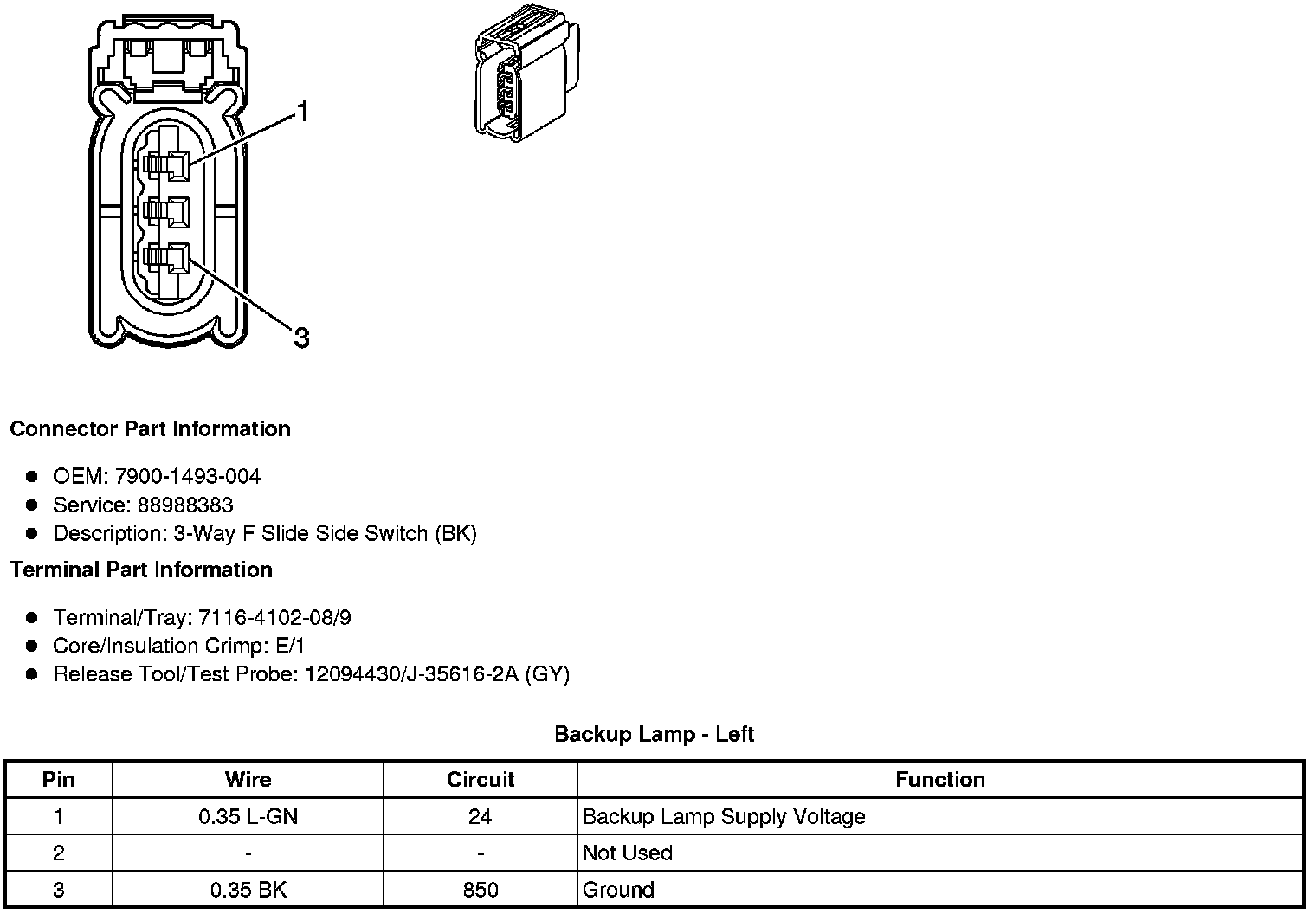

Backup Lamp
- Left

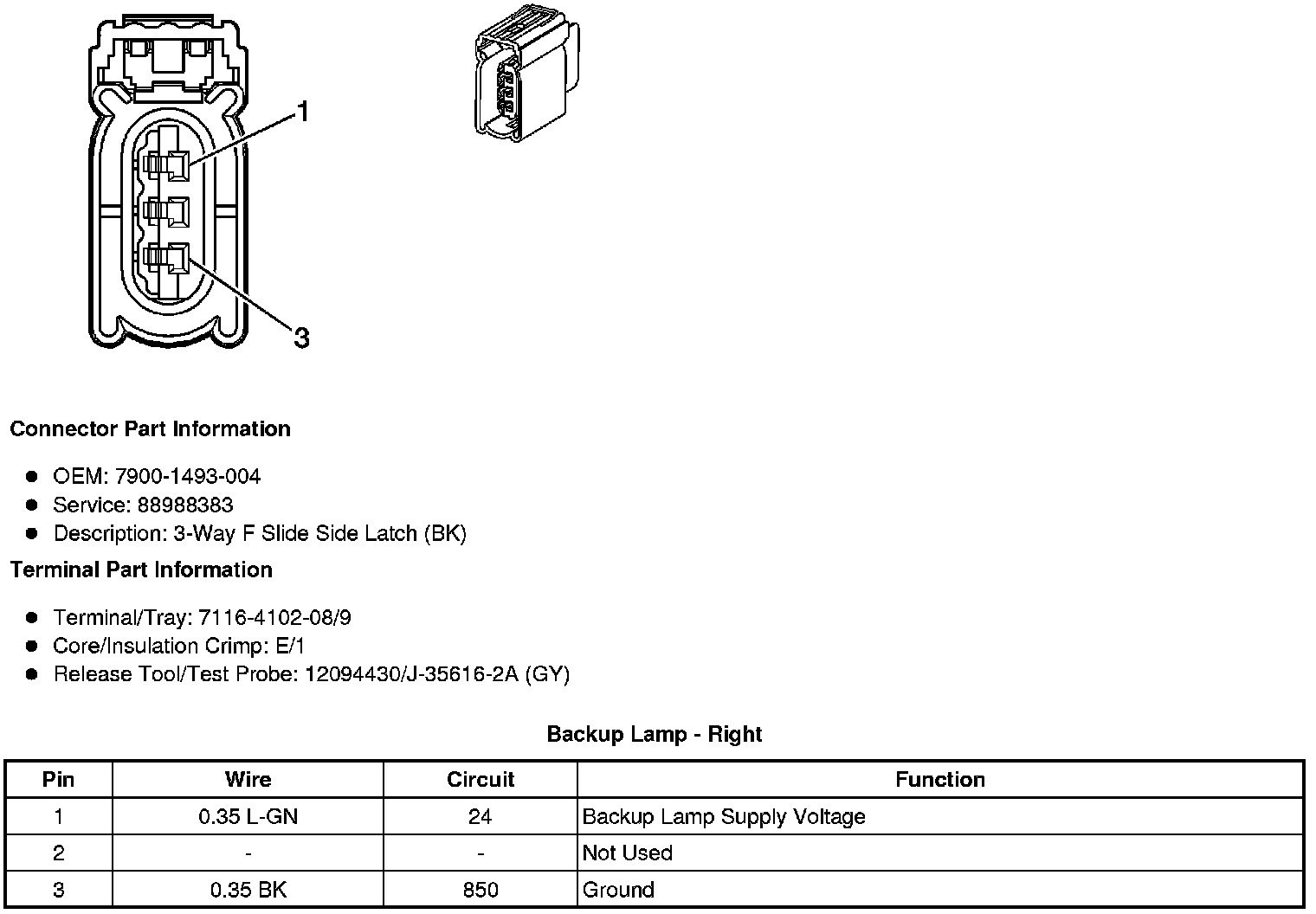

Backup Lamp
- Right
