Antenna, Navigation: Service and Repair

Navigation Antenna Coaxial Cable Replacement

Removal Procedure




1. Remove the passenger side sail panel. Refer to Sail Panel Replacement (Service and Repair).

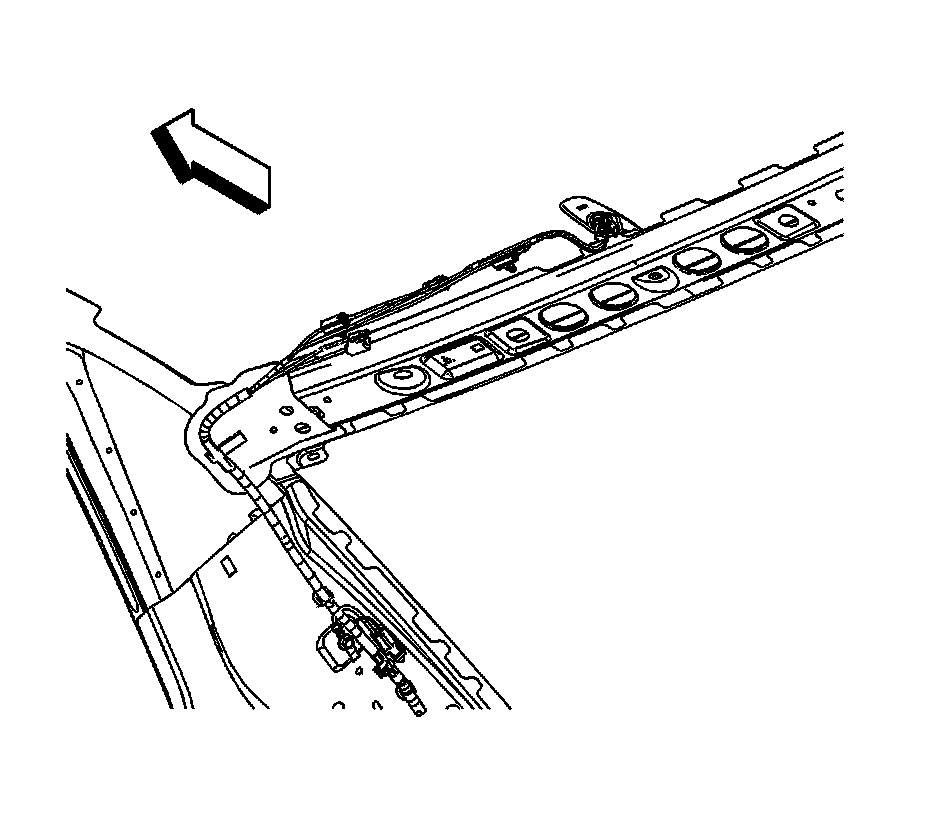

2. Lower the rear of the headliner to gain access to the coax cable. Refer to Headlining Trim Panel Replacement (Service and Repair).

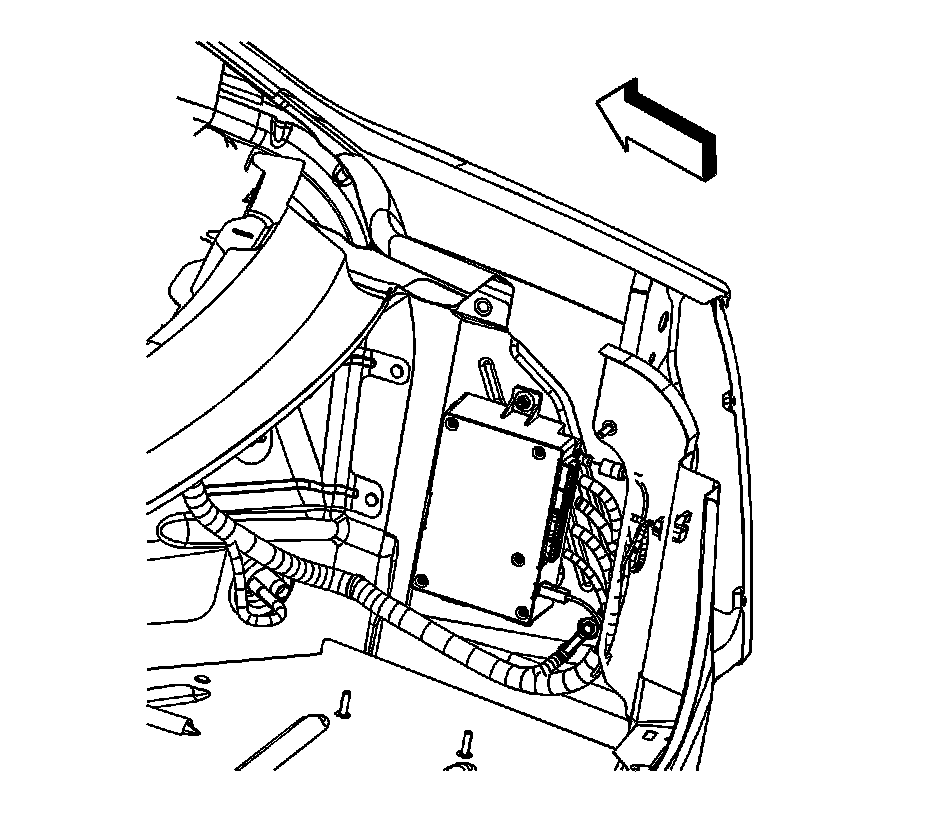

3. Remove the right rear compartment trim.
4. Disconnect the coax cable connectors.
Important: If replacing the cable with a new one cut the connector ends off and leave the old cable installed in the wire harness.


5. Remove the coax cable.

Installation Procedure

Important: Rout and secure the new cable next to the existing cable.





1. Install the coax cable.
2. Connect the electrical connectors.




3. Install the right side sail panel. Refer to Sail Panel Replacement (Service and Repair).
4. Install the headliner. Refer to Headlining Trim Panel Replacement (Service and Repair).
