Home
>>
Cadillac
>>
2009
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch
Component Connector End Views

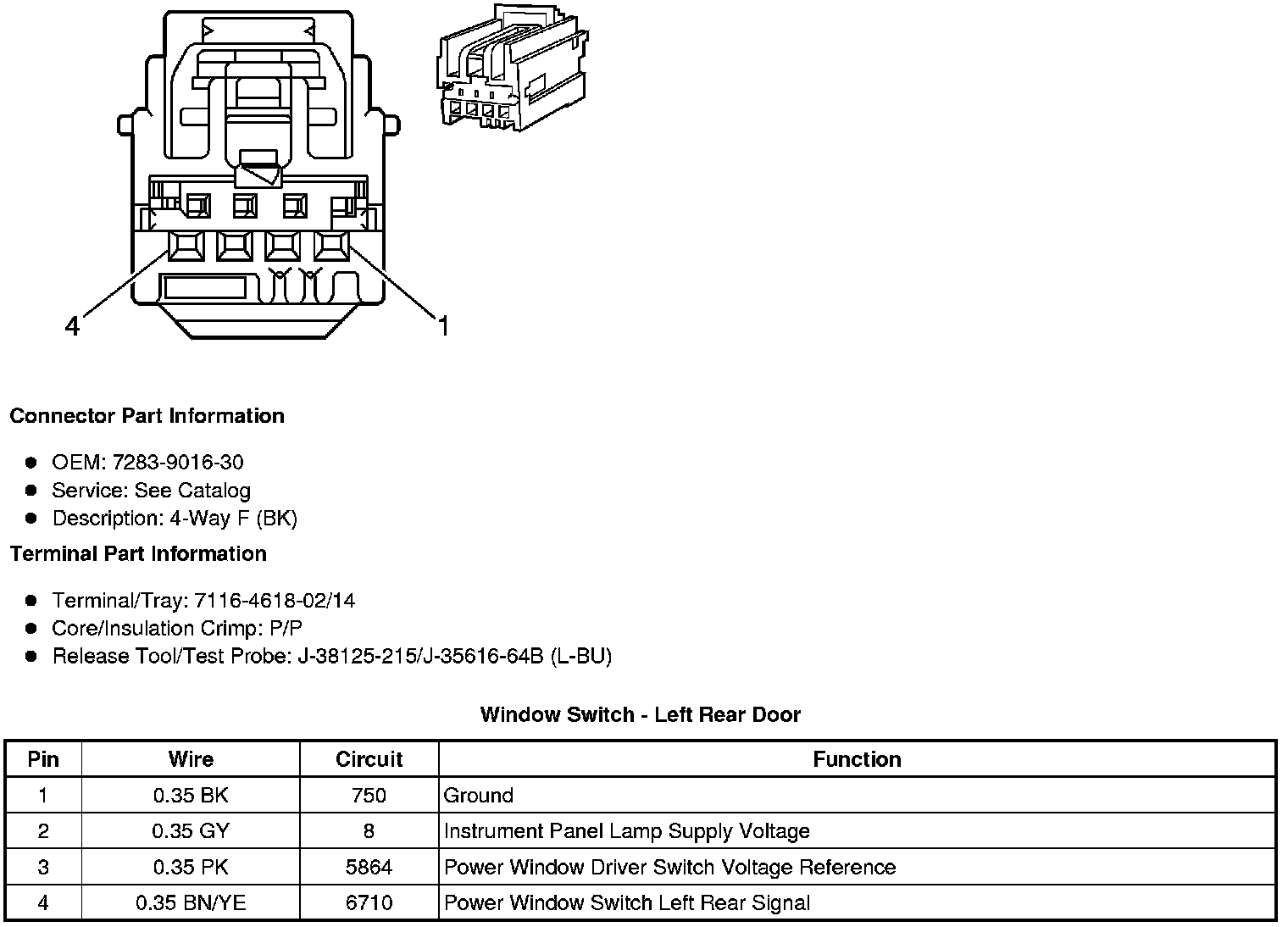

Window Switch - Left Rear Door

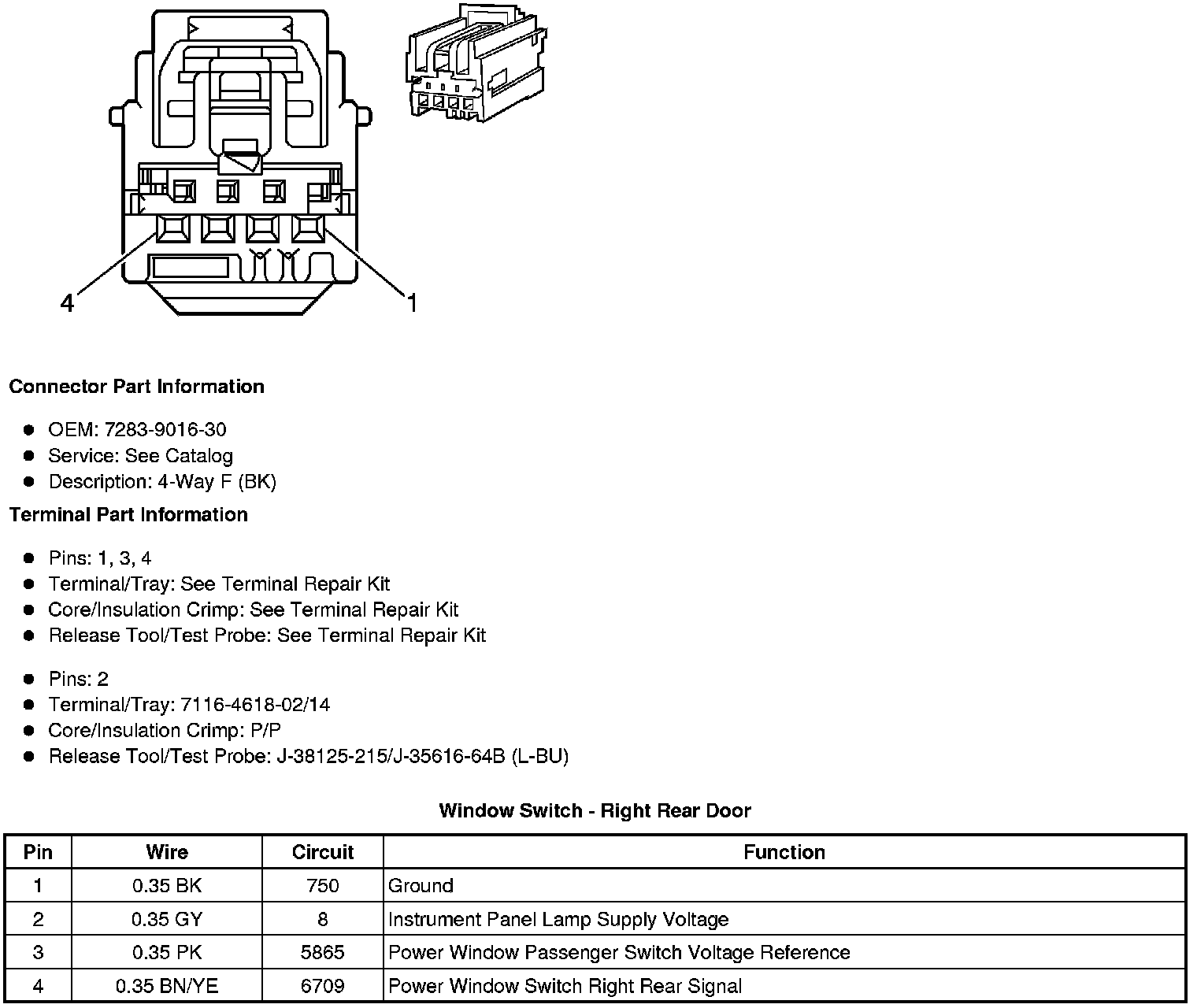

Window Switch - Right Rear Door
