Multiple Junction Connector
>>
X300 - X399
>>
X354
X354

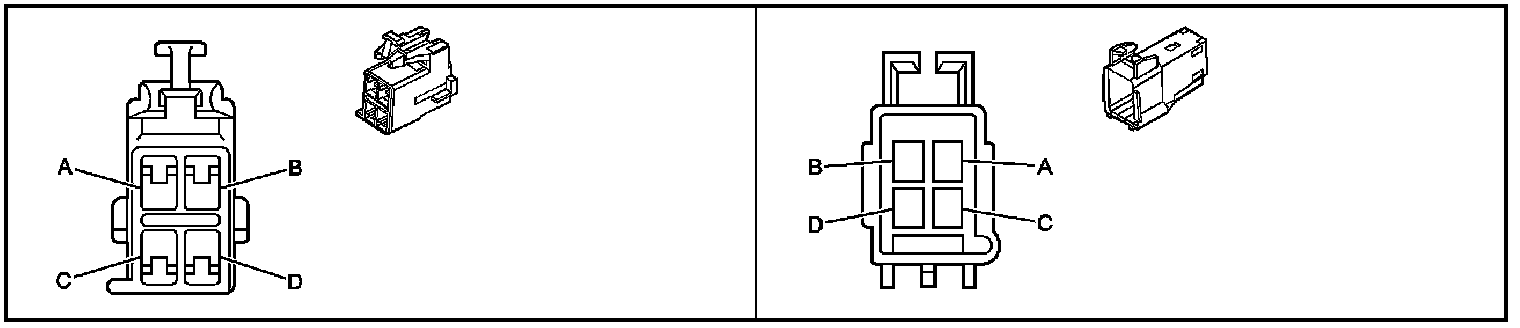

Inline Harness Connector End Views

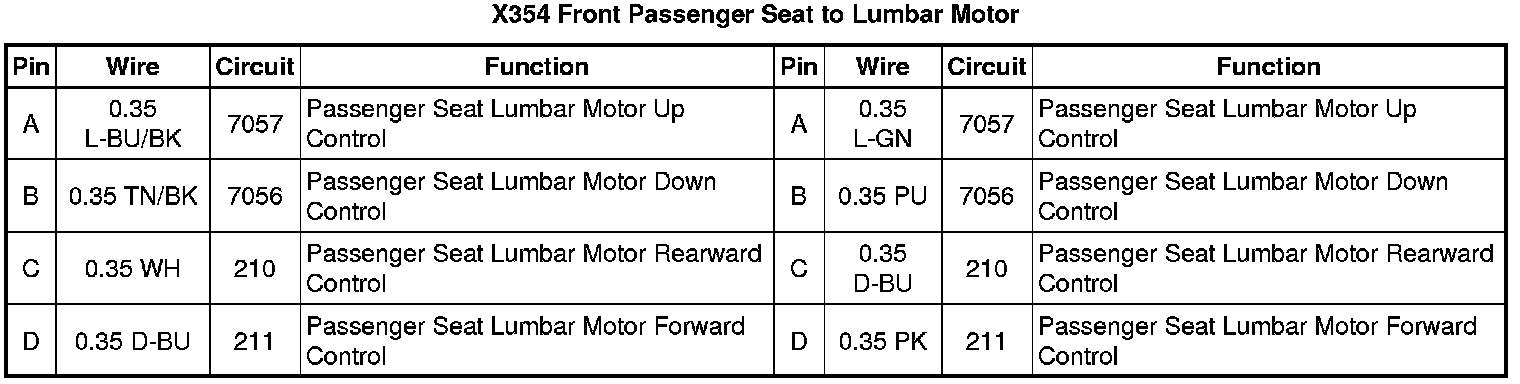

X354 Front Passenger Seat to Lumbar Motor
