Home
>>
Cadillac
>>
2009
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Diagrams
>>
Connector Views
Connector Views

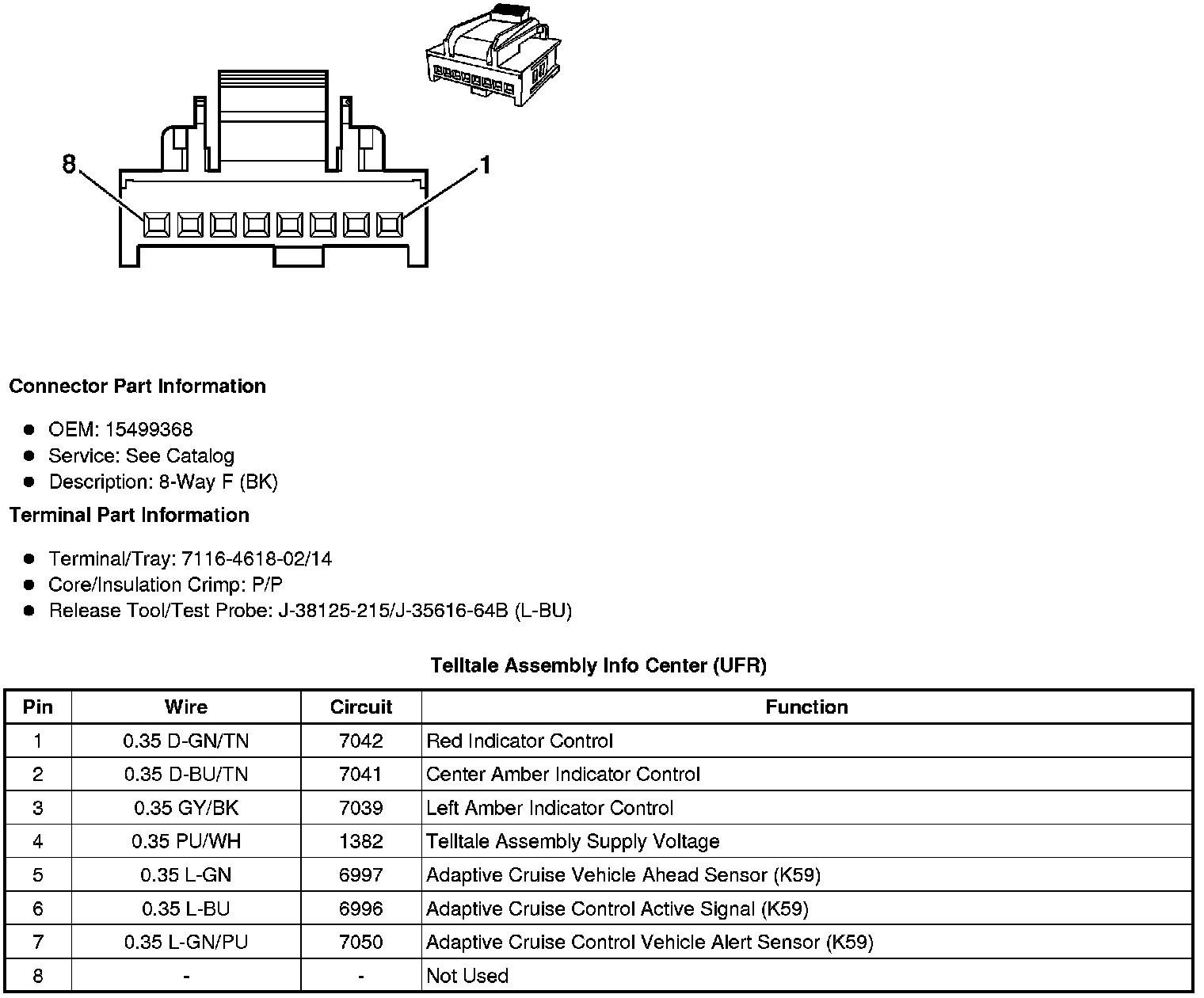

Component Connector End Views
Telltale Assembly Info Center (UFR)
