Exhaust Manifold Heat Shield Replacement - Left Side

Exhaust Manifold Heat Shield Replacement - Left Side (V8)

Removal Procedure
Warning: Refer to Exhaust Service Warning (Service Precautions).

Warning: Refer to Protective Goggles and Glove Warning (Protective Goggles and Glove Warning).





1. Remove the left exhaust manifold. Refer to Exhaust Manifold Replacement - Left Side (V6) (Exhaust Manifold Replacement - Left Side)Exhaust Manifold Replacement - Left Side (V8) (Exhaust Manifold Replacement - Left Side).

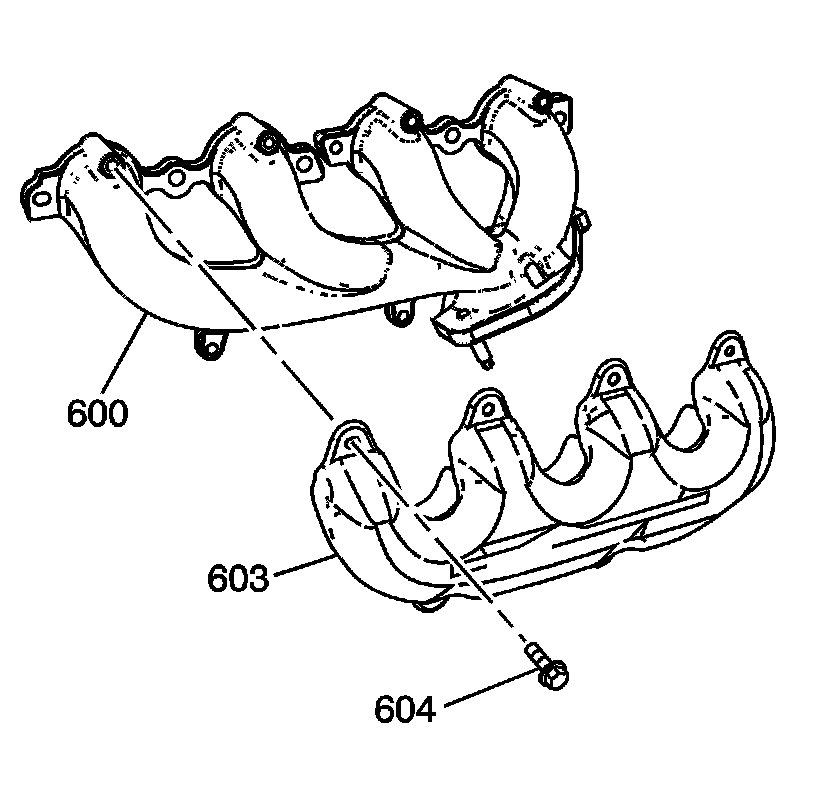

2. Remove the bolts (604) securing the exhaust manifold heat shield (603) to the exhaust manifold (600).
3. Remove the heat shield from the manifold.

Installation Procedure




1. Install the exhaust manifold heat shield to the manifold.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolts (604) securing the exhaust manifold heat shield (603) to the manifold (600) and tighten to 9 Nm (80 lb in).
3. Install the left exhaust manifold. Refer to Exhaust Manifold Replacement - Left Side (V6) (Exhaust Manifold Replacement - Left Side)Exhaust Manifold Replacement - Left Side (V8) (Exhaust Manifold Replacement - Left Side).
