Park Brake Release Cable Replacement

Parking Brake Release Cable Replacement

Removal Procedure

1. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive) (Service and Repair)Driver Knee Bolster Replacement (Right Hand Drive) (Service and Repair).




2. Remove the park brake release handle screws.

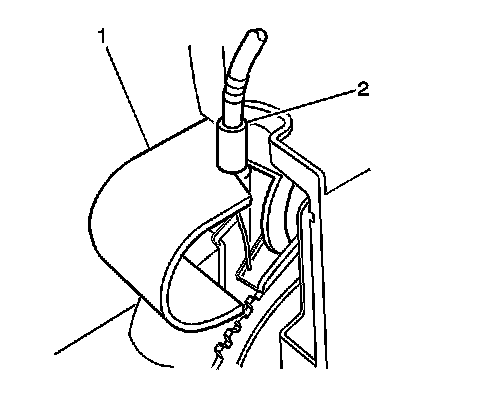

3. Remove the park brake release cable housing (3) from the park brake release handle assembly (1).
4. Remove the park brake release cable (2) from the park brake release handle assembly.




5. Remove the park brake release cable housing (2) from the park brake pedal assembly (1).

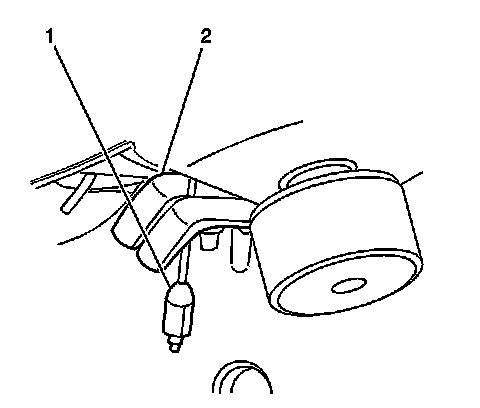

6. Remove the park brake cable (1) from the park brake pedal release lever (2).
7. Remove the park brake release cable from the vehicle.

Installation Procedure




1. Install the park brake cable (1) to the park brake pedal release lever (2).




2. Install the park brake release cable housing (2) to the park brake pedal assembly (1).




3. Install the park brake release cable (2) to the park brake release handle assembly (1).
4. Install the park brake release cable housing (3) to the park brake release handle assembly (1).
5. Install the park brake release handle assembly (1) to the knee bolster.

Caution: Refer to Fastener Caution (Fastener Caution).

6. Install the park brake release handle screws and tighten to 2 Nm (18 lb in).
7. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive) (Service and Repair)Driver Knee Bolster Replacement (Right Hand Drive) (Service and Repair).
