X425
X425

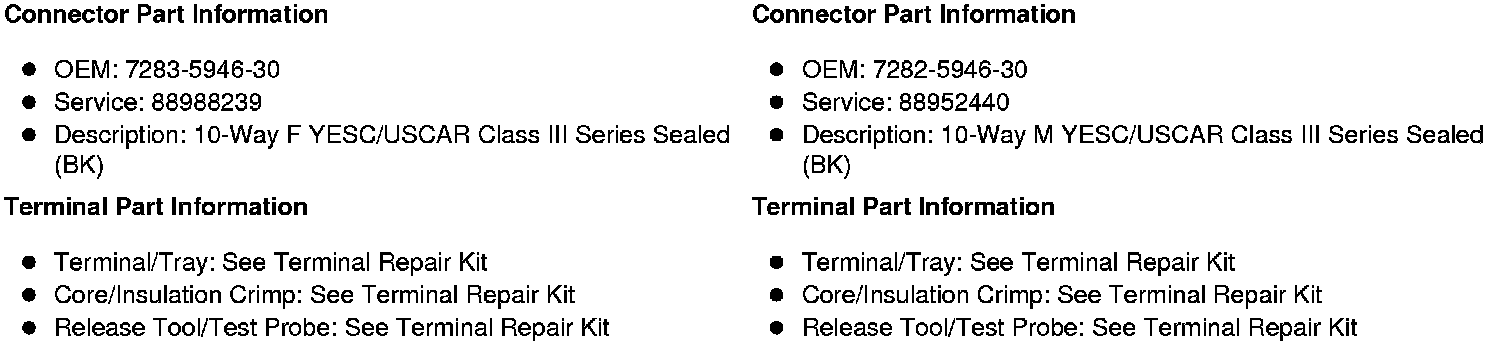

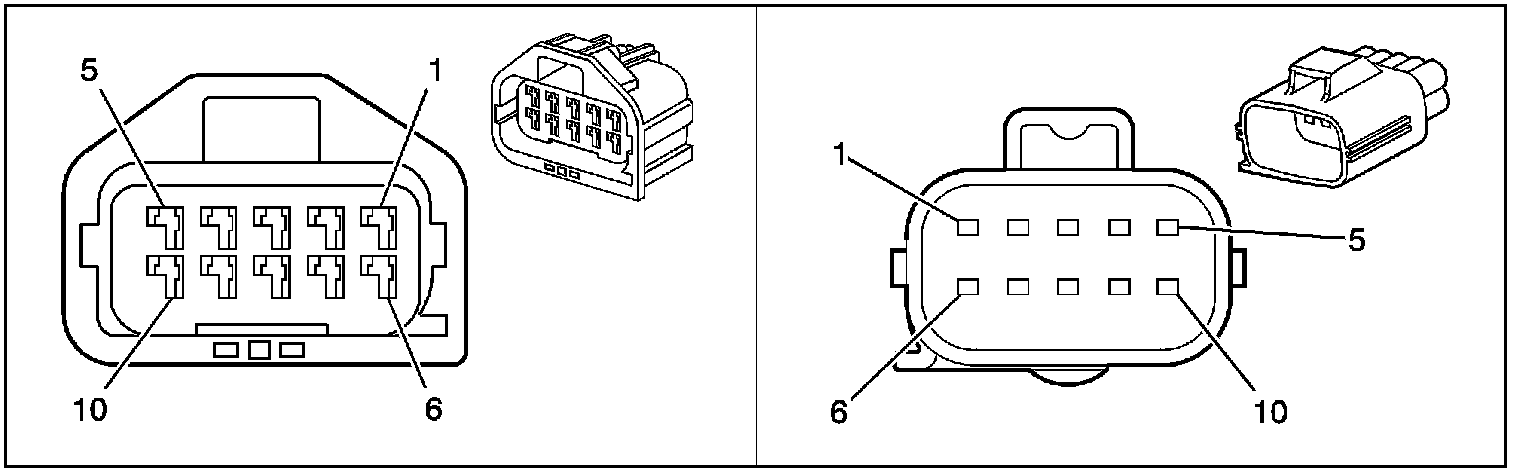

Inline Harness Connector End Views

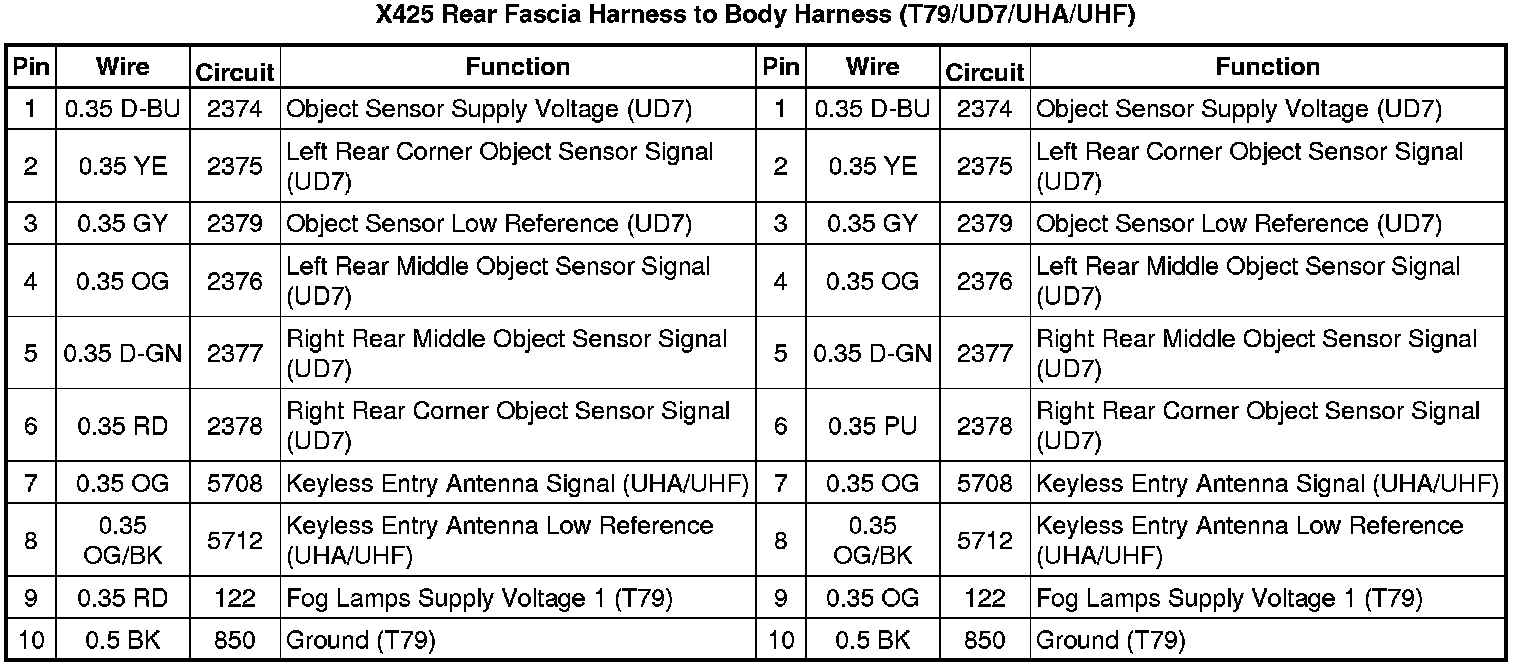

X425 Rear Fascia Harness to Body Harness (T79/UD7/UHA/UHF)
