Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2009
>>
CTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rear Door Latch
Rear Door Latch
Component Connector End Views

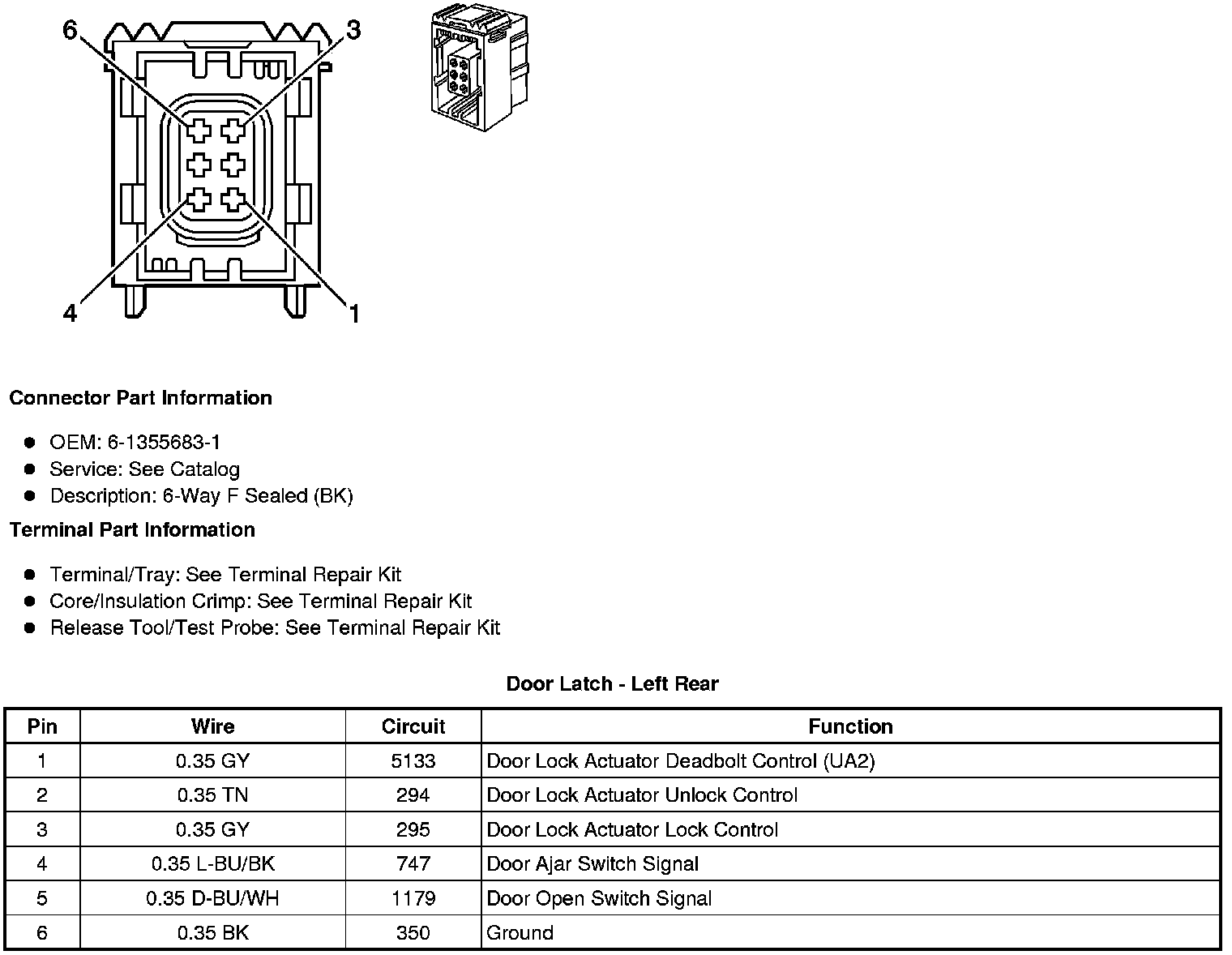

Door Latch - Left Rear

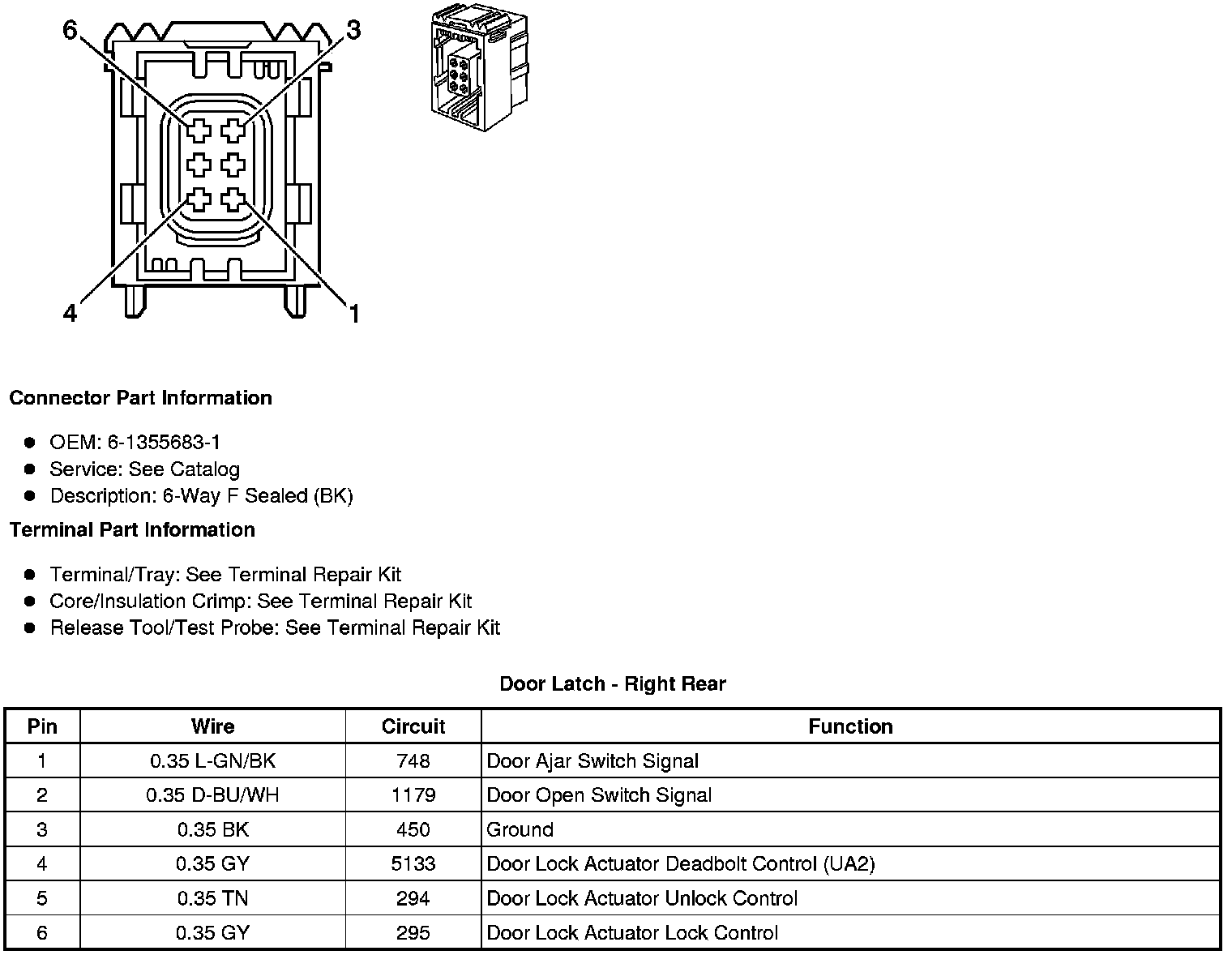

Door Latch - Right Rear
