Door Module

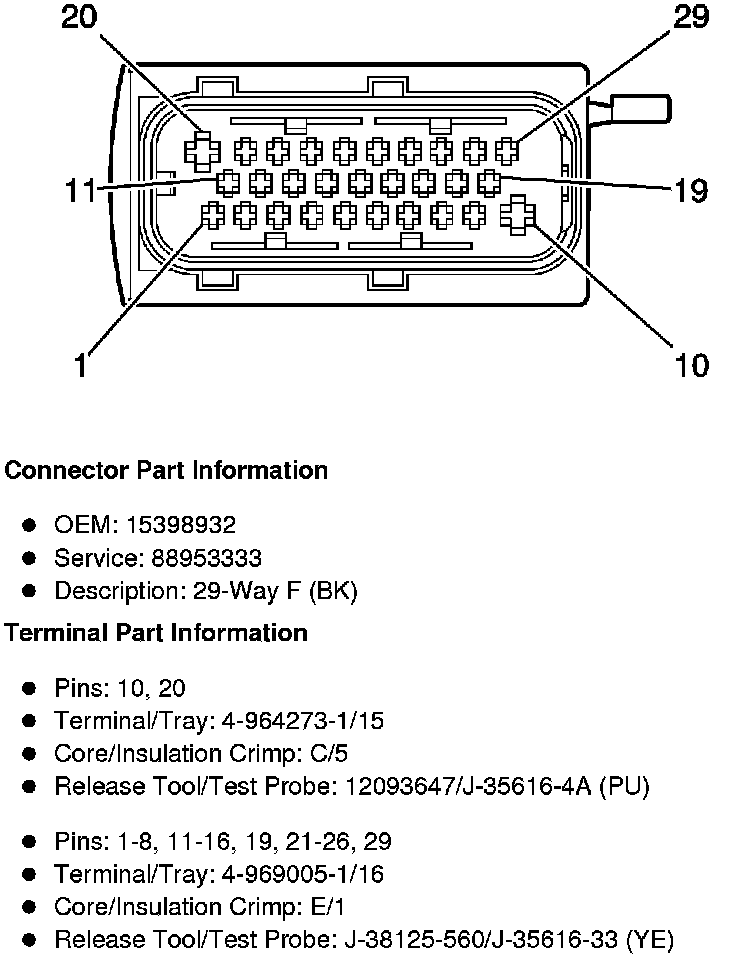

Component Connector End Views

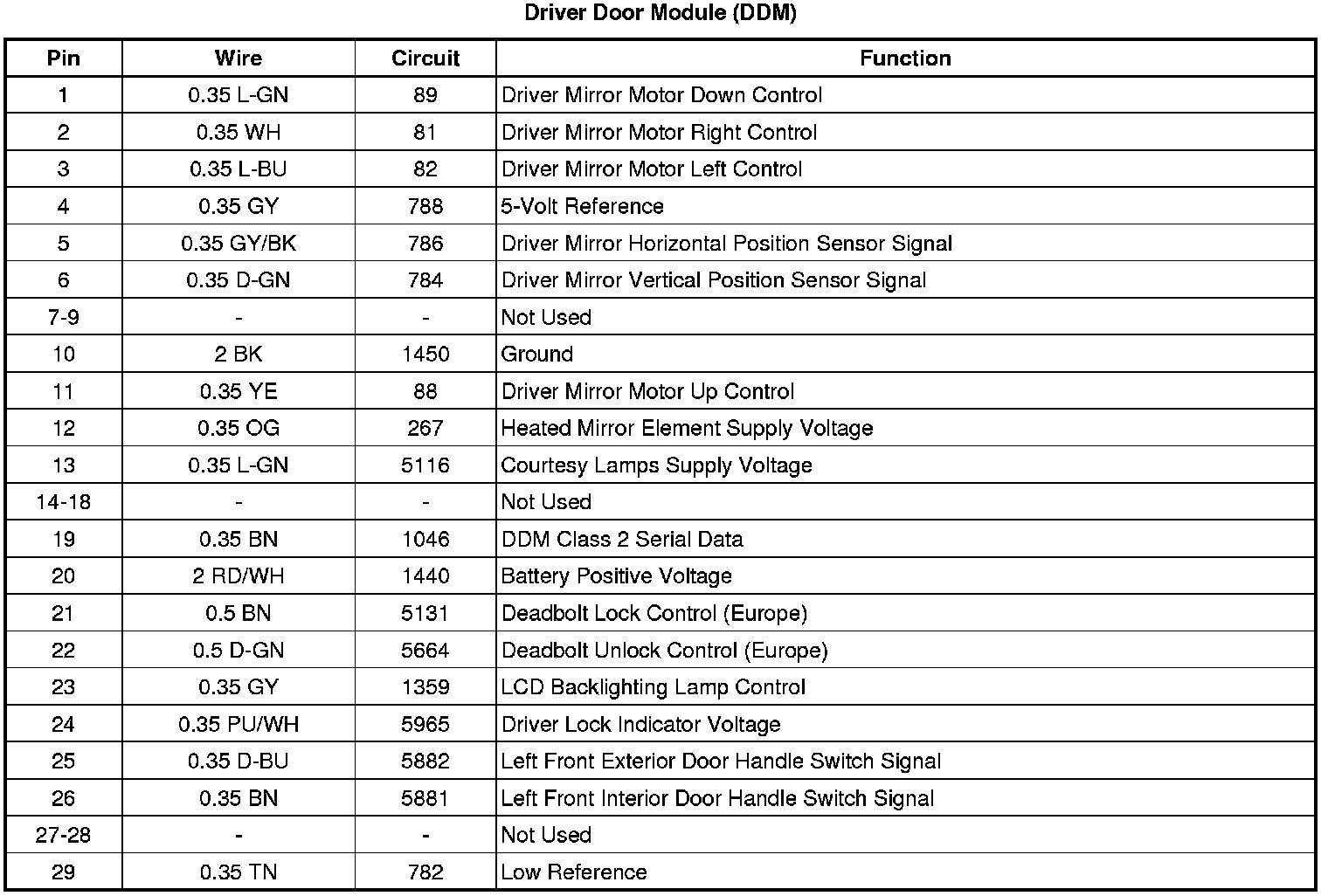

Driver Door Module (DDM)

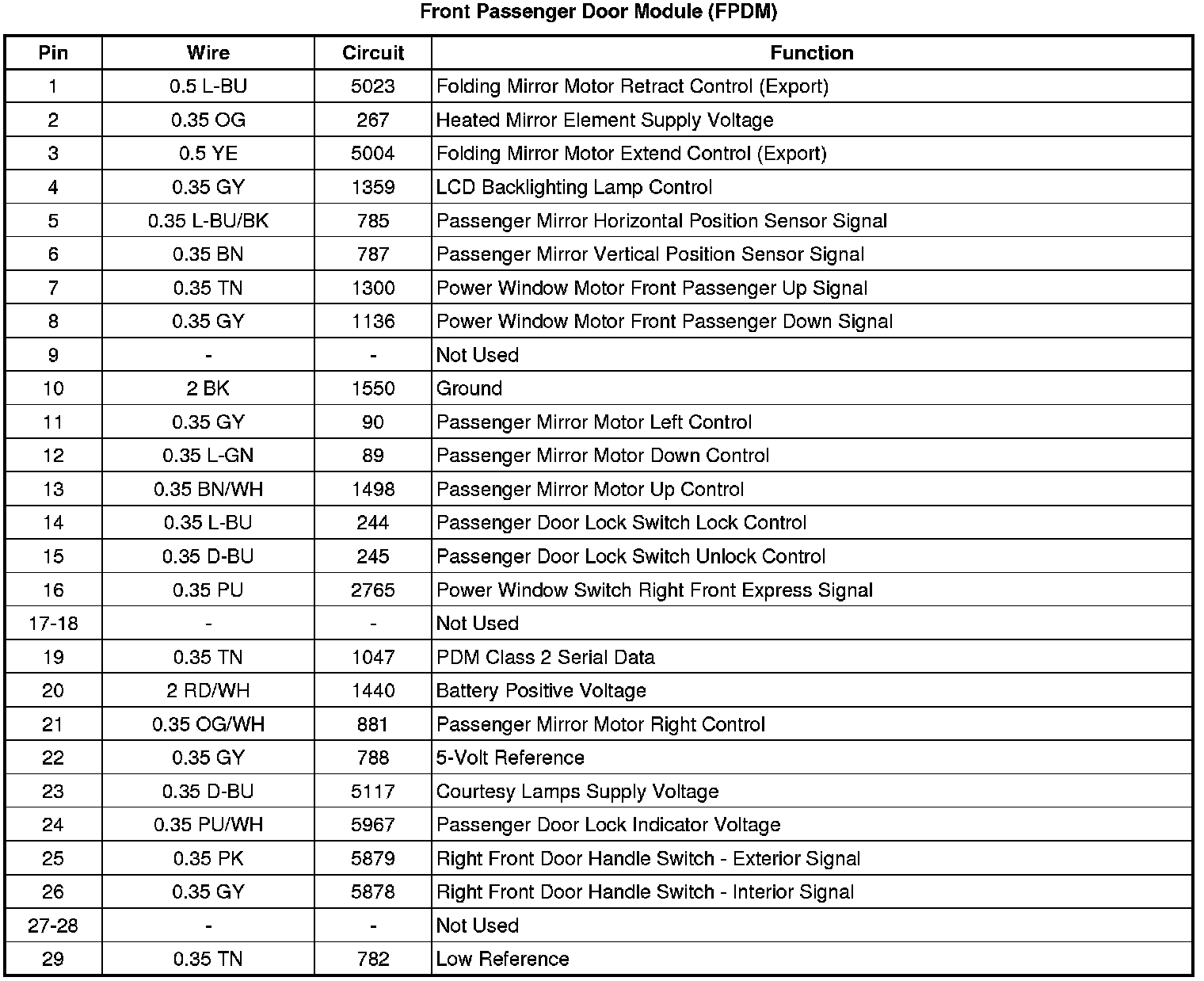

Front Passenger Door Module (FPDM)
