Home
>>
Cadillac
>>
2008
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
HVAC Control Module - Auxiliary (CJ4)
HVAC Control Module - Auxiliary (CJ4)

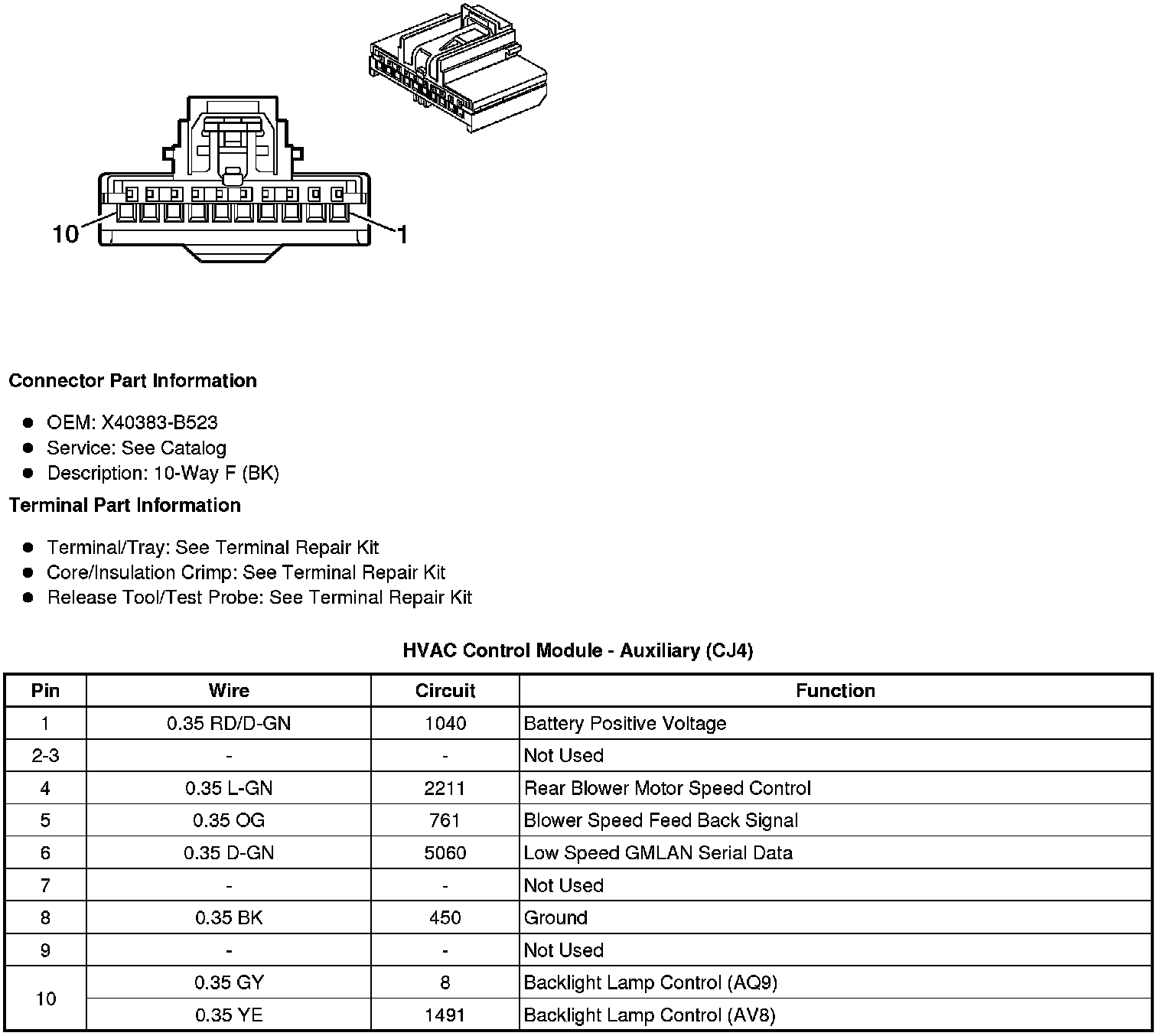

Component Connector End Views
HVAC Control Module - Auxiliary (CJ4)
