Transmission Temperature Sensor/Switch, A/T
>>
Automatic Transmission Fluid Temperature (TFT) Sensor
Automatic Transmission Fluid Temperature (TFT) Sensor

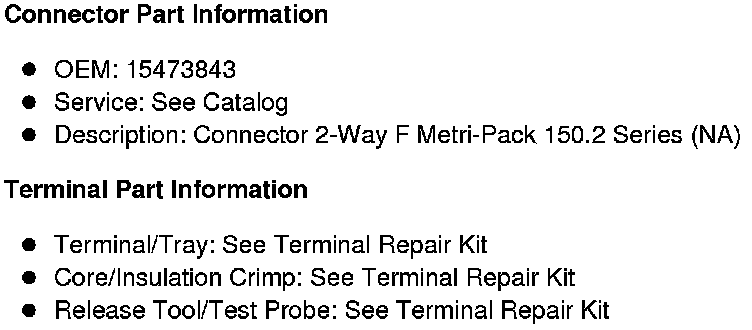

Component Connector End Views

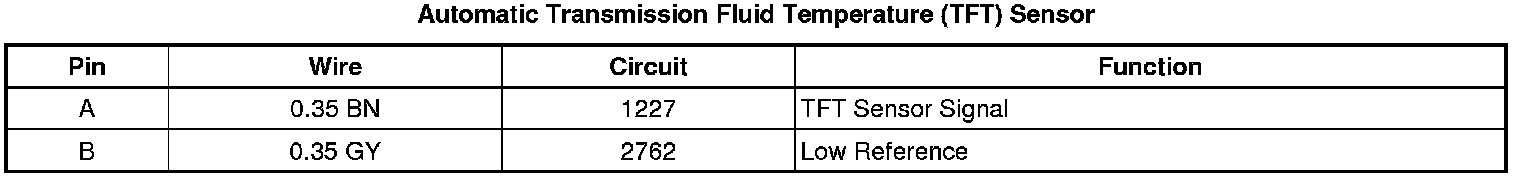

Automatic Transmission Fluid Temperature (TFT) Sensor
