Cadillac
>>
2008
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

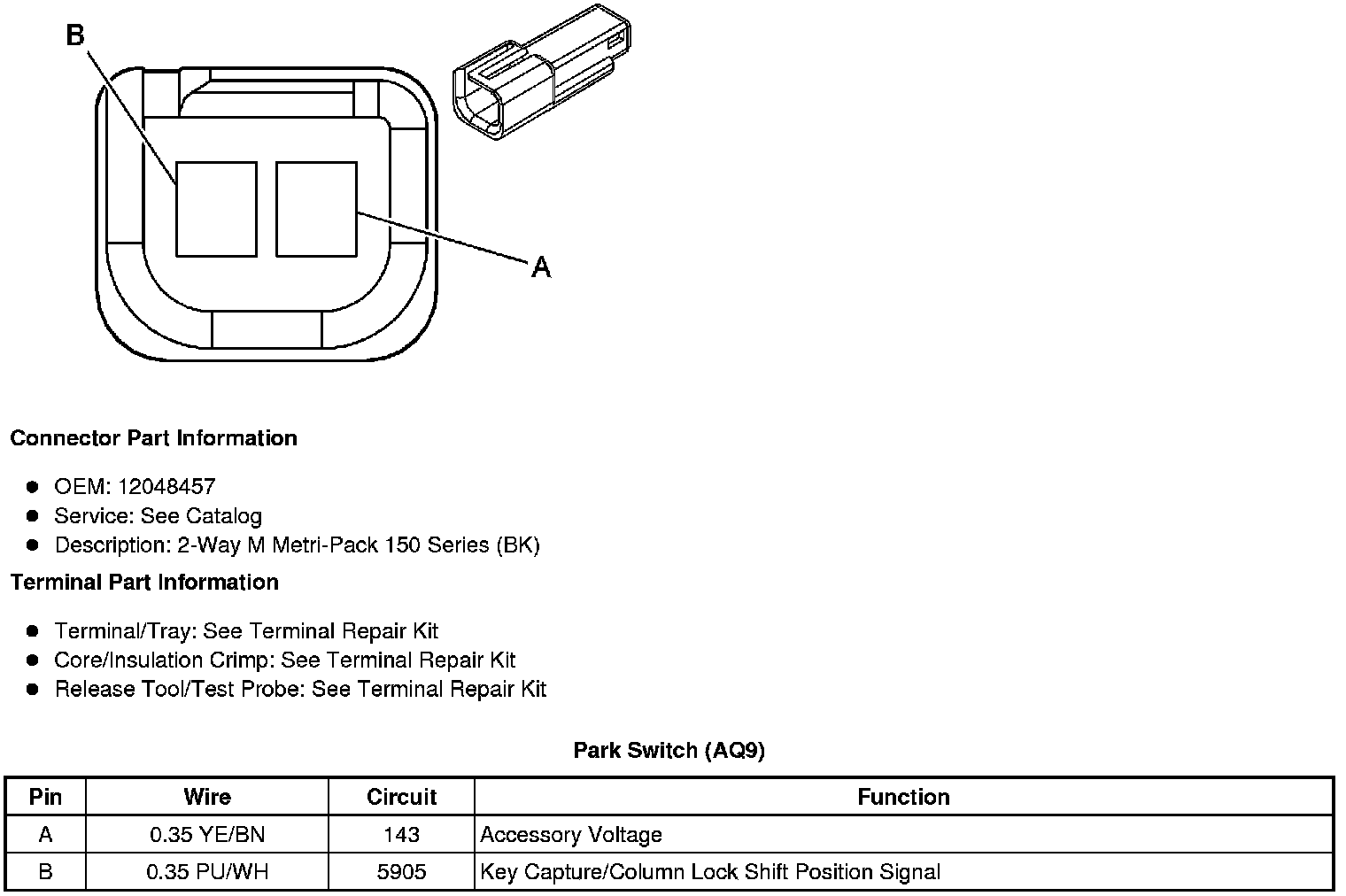

Component Connector End Views
Park Switch (AQ9)
