Door Module
>>
Front Passenger Door Module (FPDM) X1
Front Passenger Door Module (FPDM) X1

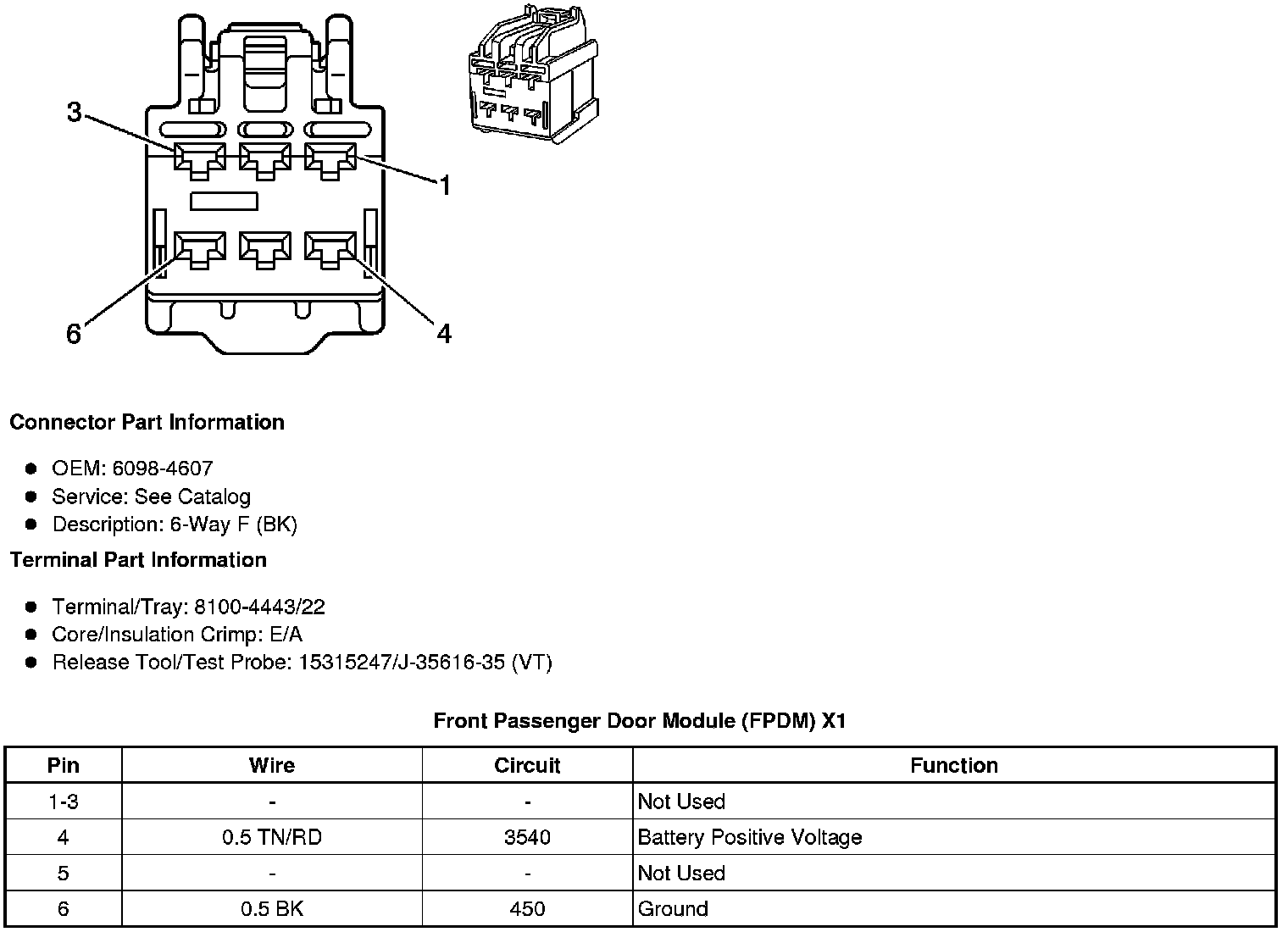

Component Connector End Views
Front Passenger
Door Module
(FPDM) X1
