Home
>>
Cadillac
>>
2008
>>
CTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Diagrams
>>

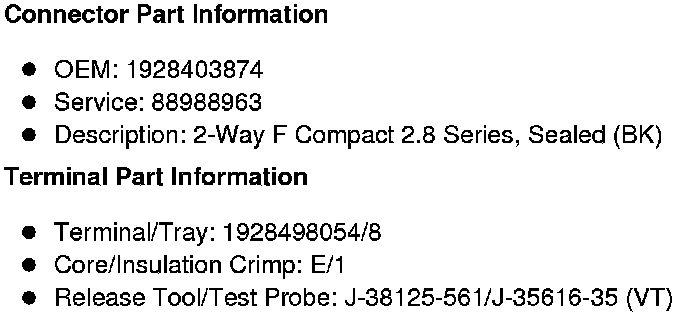

Connector Views
Connector Views

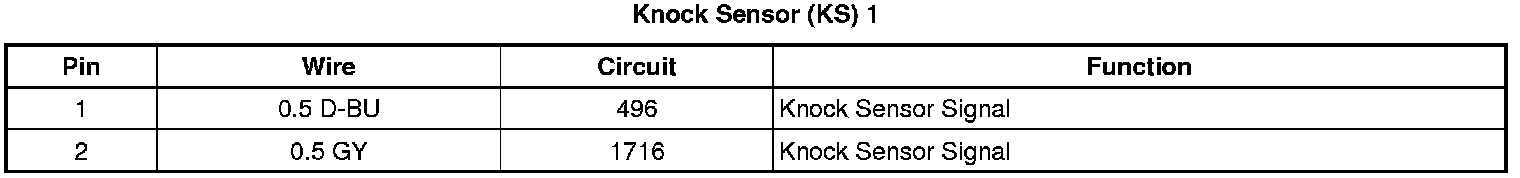

Knock Sensor (KS) 1

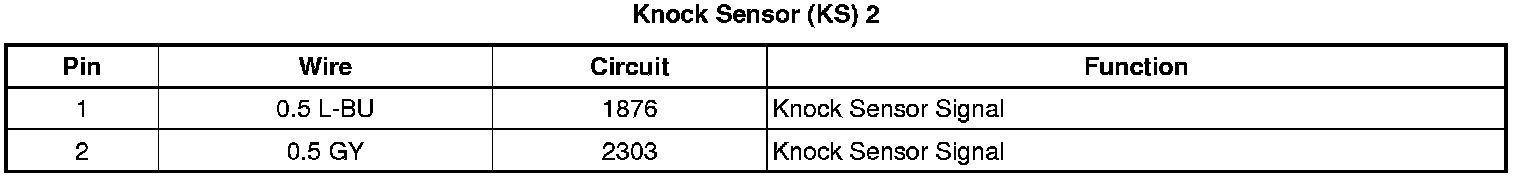

Knock Sensor (KS) 2
