Cadillac
>>
2008
>>
CTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
License Plate Lamp

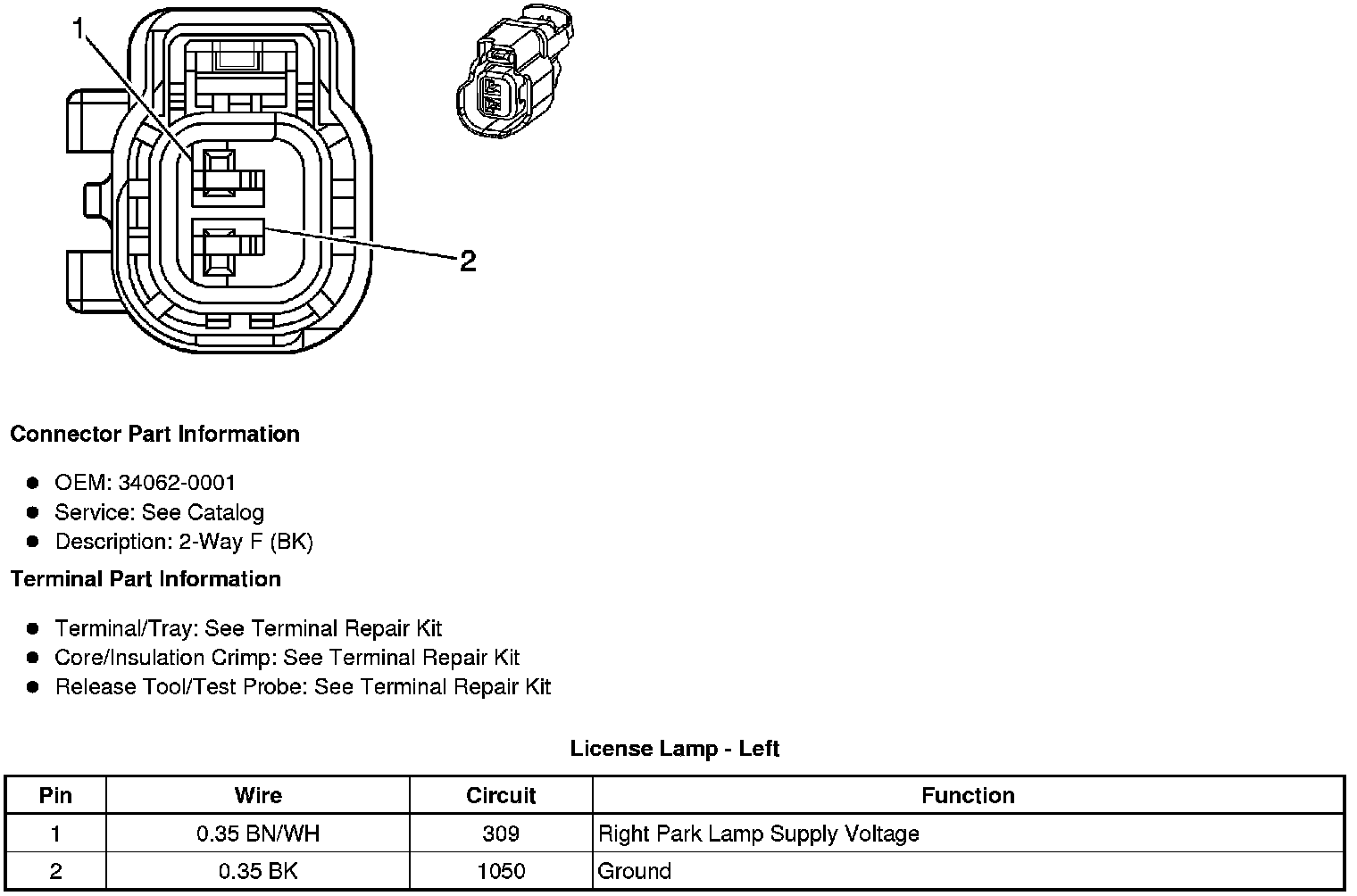

License Lamp - Left

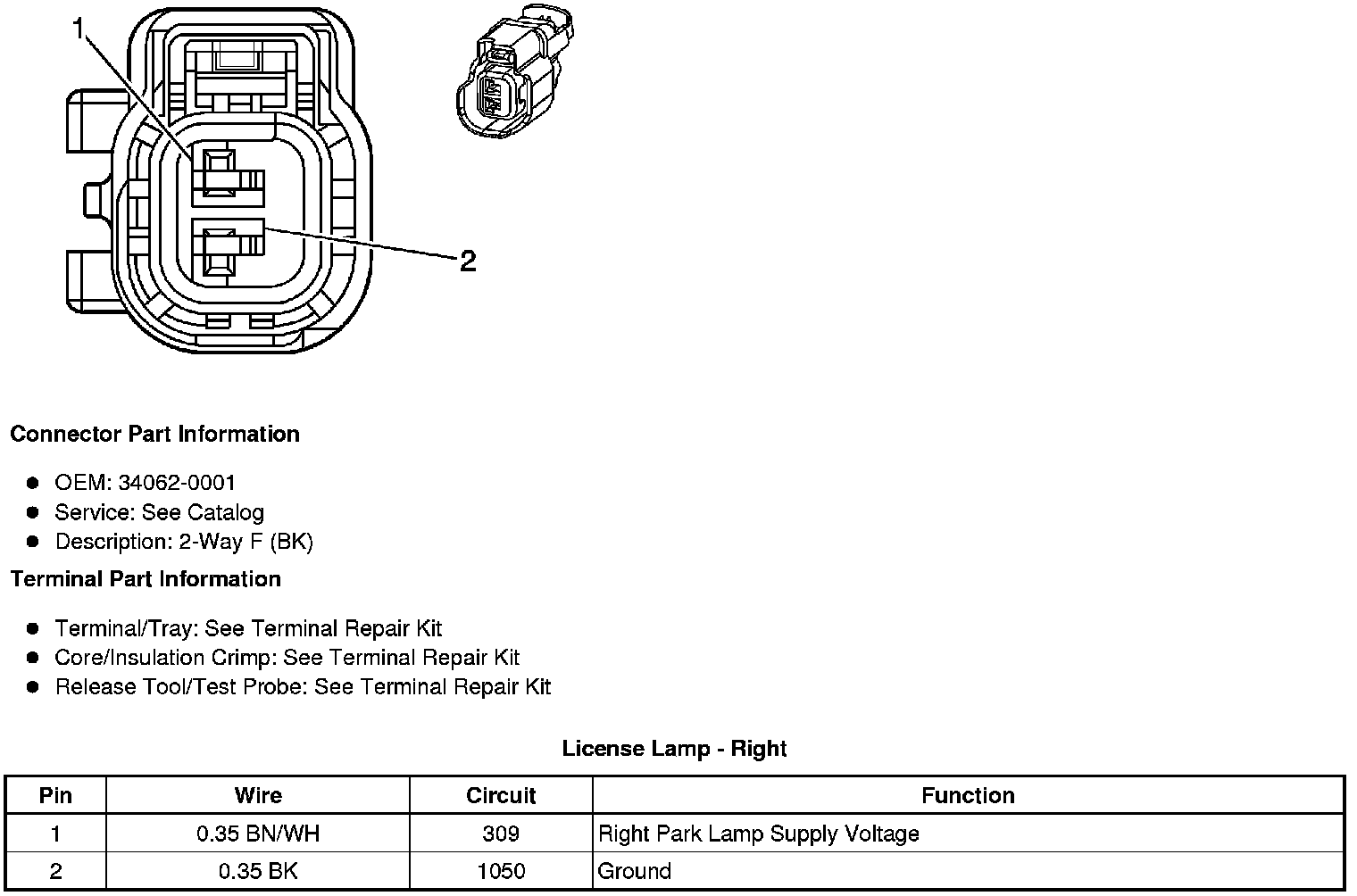

License Lamp - Right
