Cadillac
>>
2007
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Throttle Body
Throttle Body
Engine Control Module

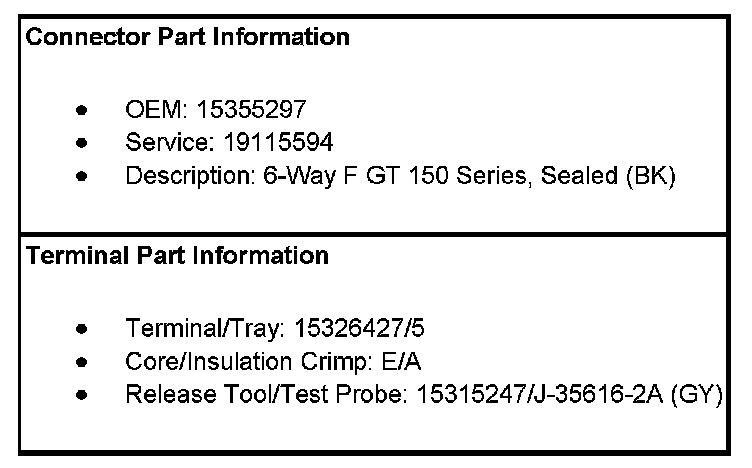

Connector End Views

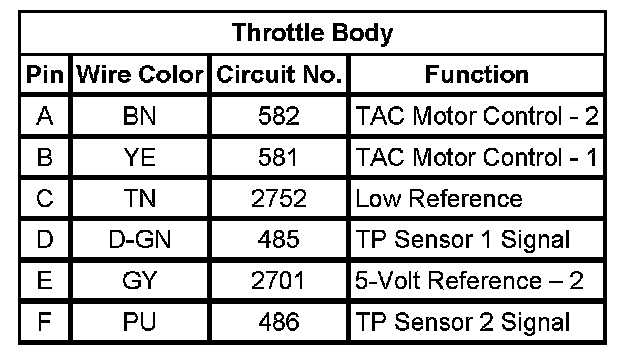

Throttle Body
