Fuel Tank Unit
Fuel Tank Unit
Engine Control Module Connector End Views

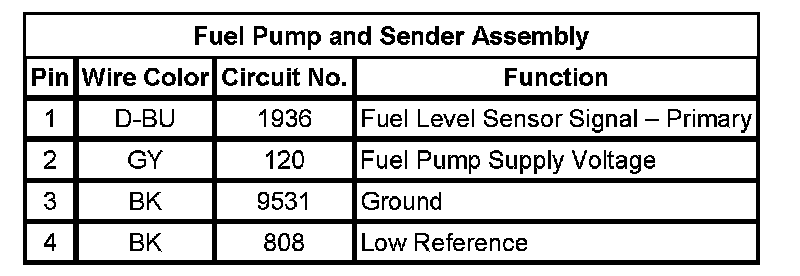

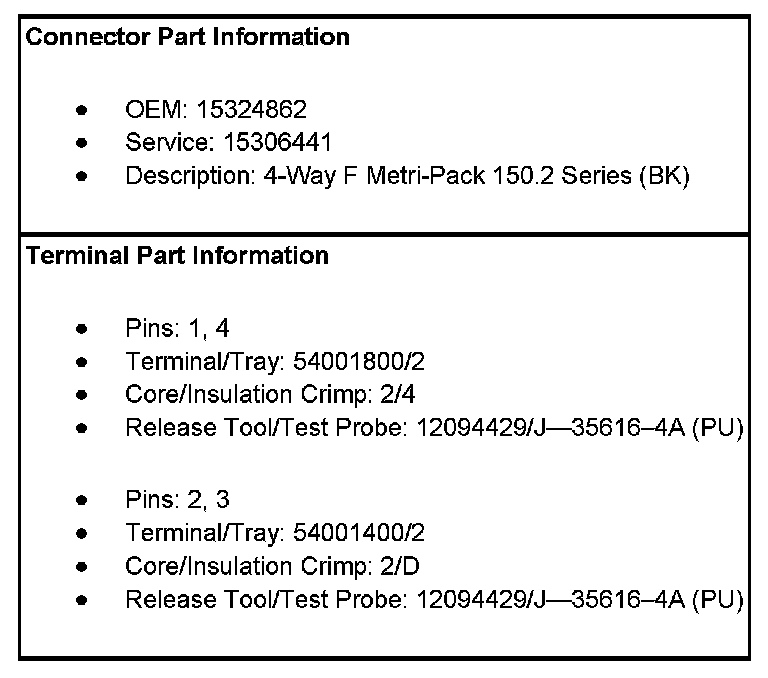

Fuel Pump and Sender Assembly
