Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor

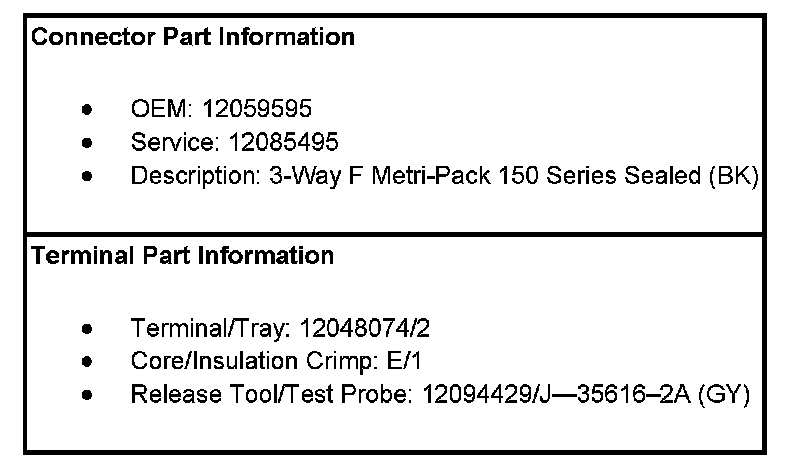

Engine Control Module Connector End Views

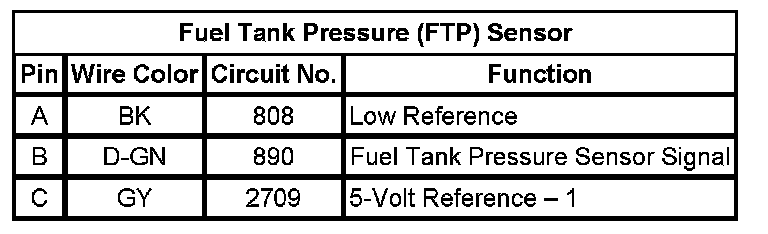

Fuel Tank Pressure (FTP) Sensor
