Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

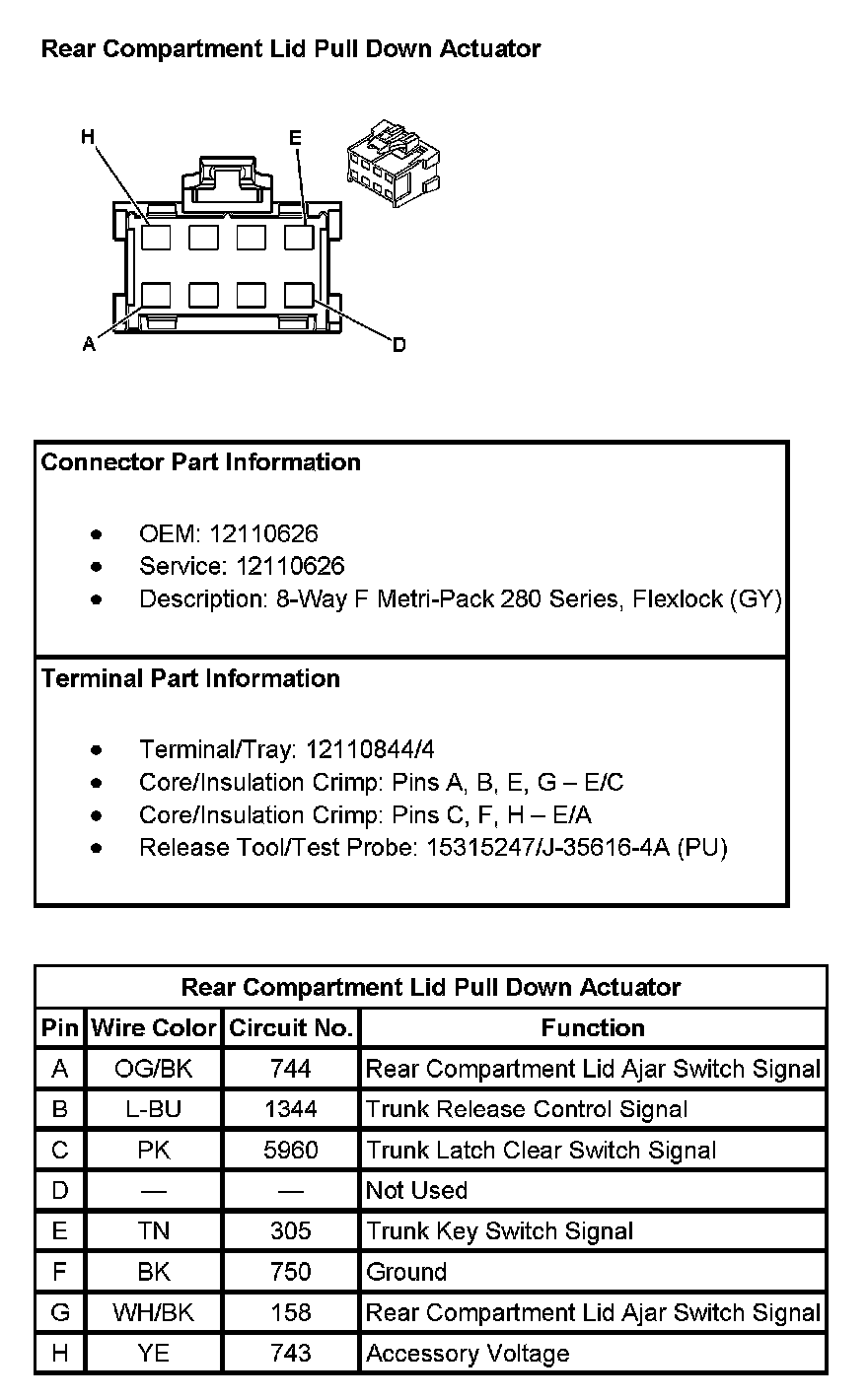

Rear Compartment Lid Pull Down Actuator:
