Home
>>
Cadillac
>>
2007
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control
>>
Cruise Control Module
Cruise Control Module

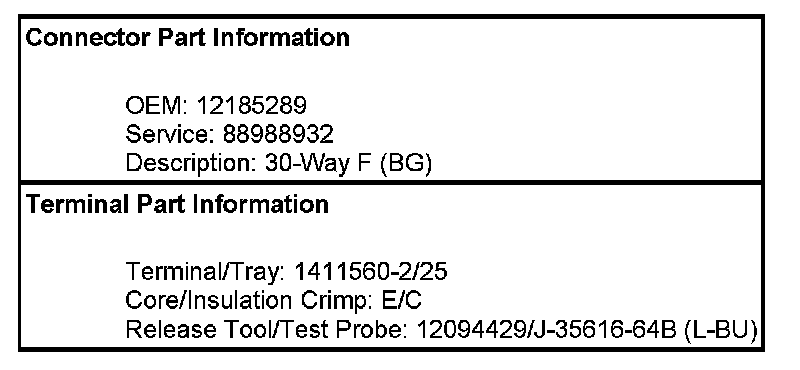

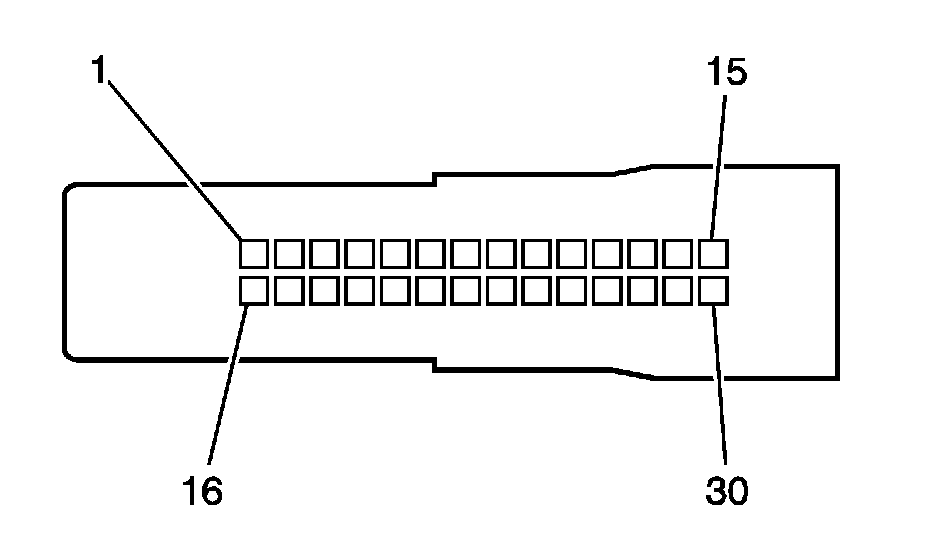

Cruise Control Connector End Views

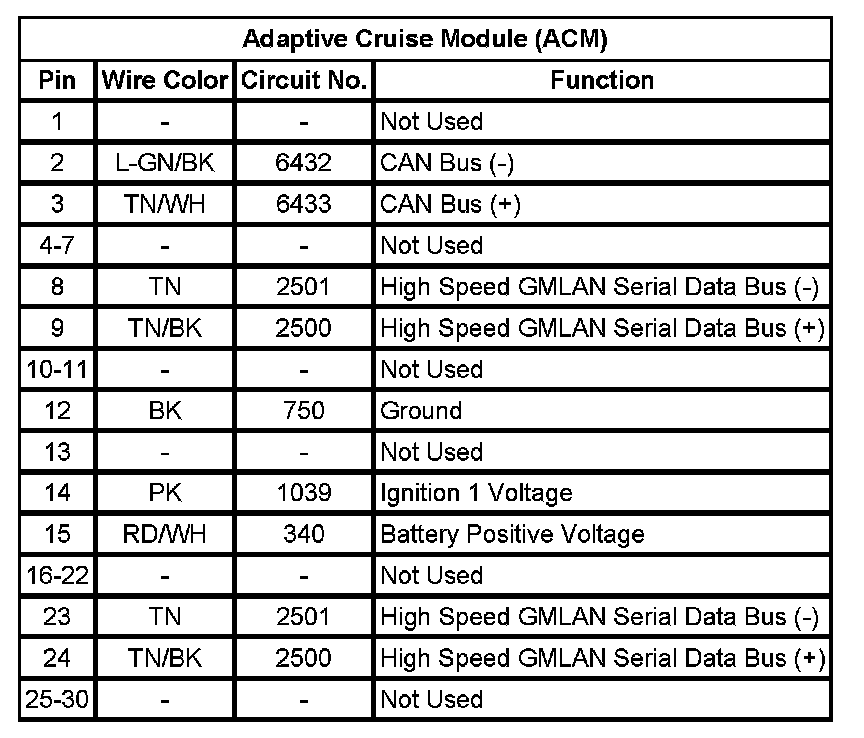

Adaptive Cruise Module (ACM)
