Cadillac
>>
2007
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Lamp
Parking Lamp
Lighting Systems Connector End Views

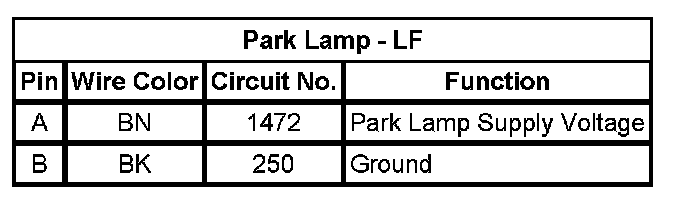

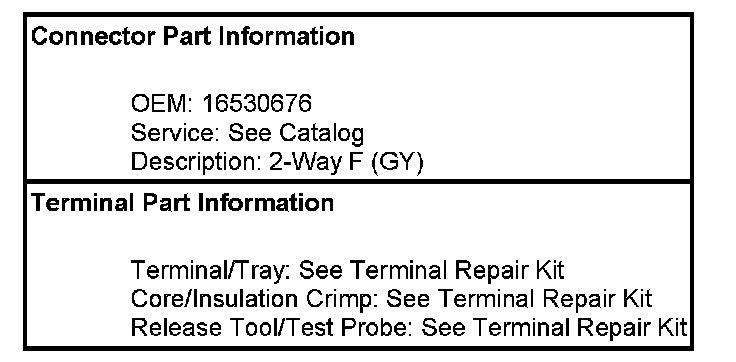

Park Lamp - LF

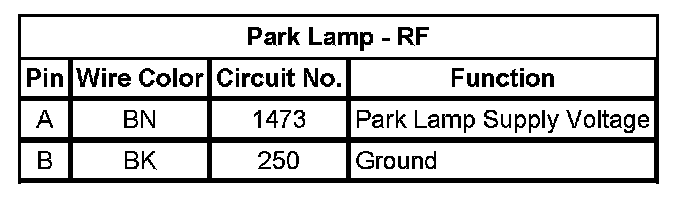

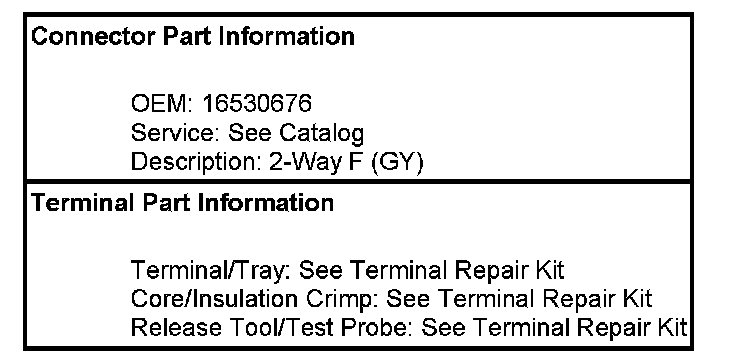

Park Lamp - RF
