Home
>>
Cadillac
>>
2007
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
>>
Object Detection Connector End Views
Object Detection Connector End Views
Object Detection Connector End Views

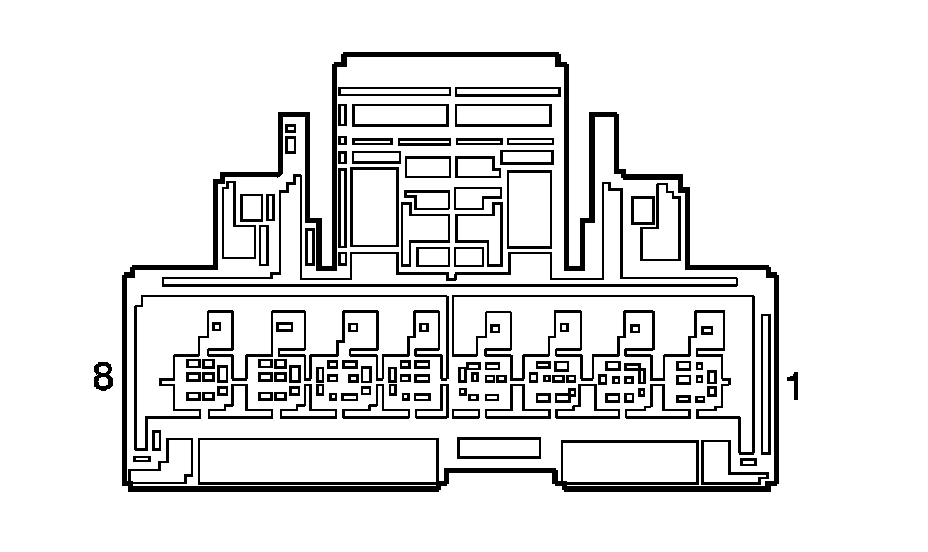

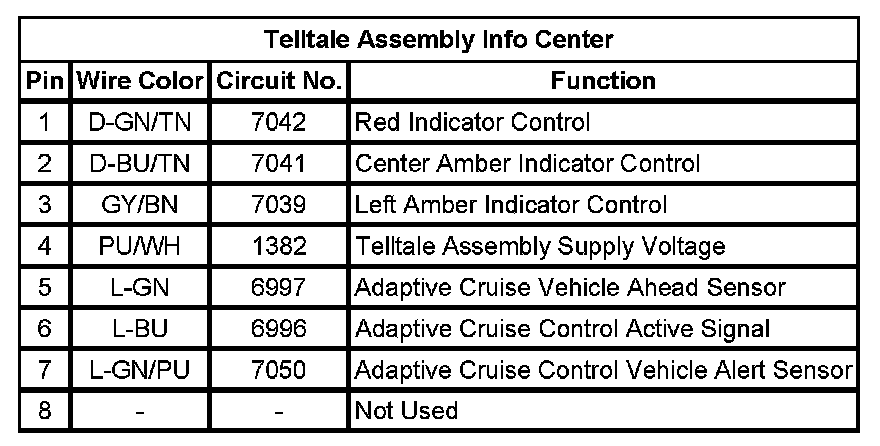

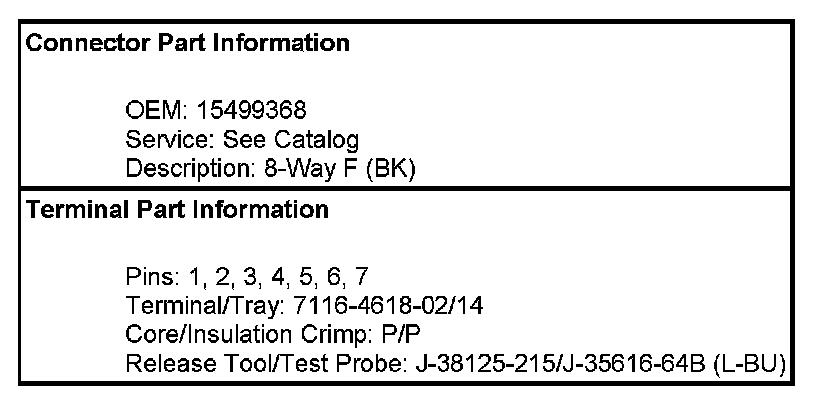

Telltale Assembly Info Center
