Automatic Transmission/Transaxle
>>
Transmission Mode Switch, A/T
Transmission Mode Switch, A/T

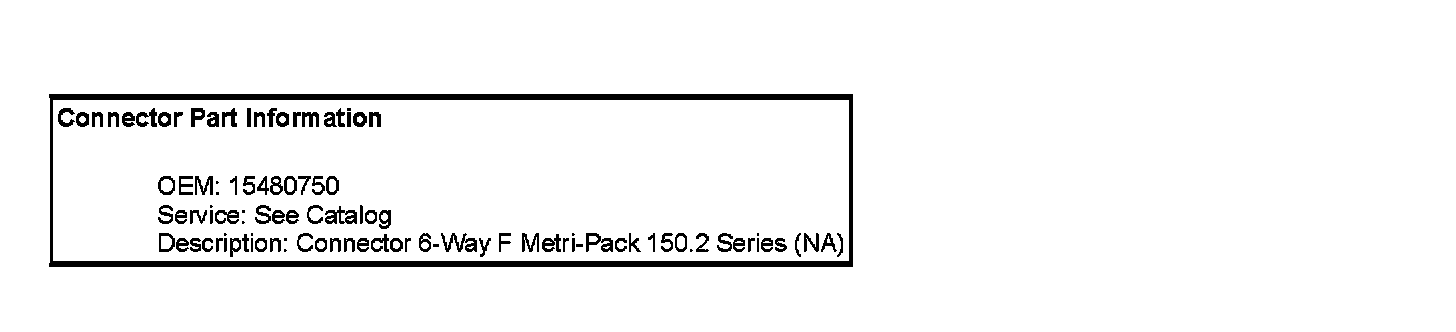

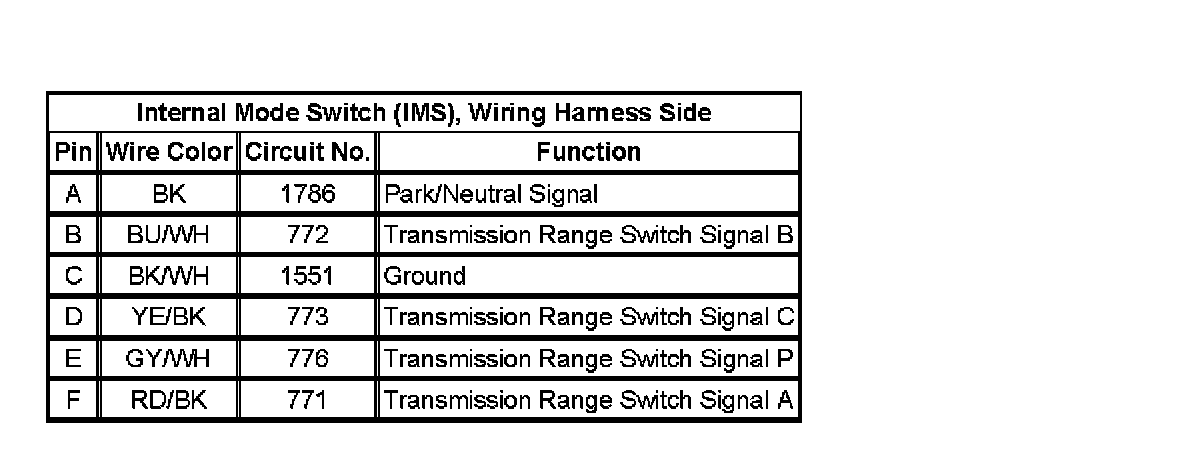

Internal Mode Switch (IMS), Wiring Harness Side
Internal Mode Switch (IMS), Wiring Harness Side:
