Cadillac
>>
2007
>>
CTS V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Level Sensor
Oil Level Sensor

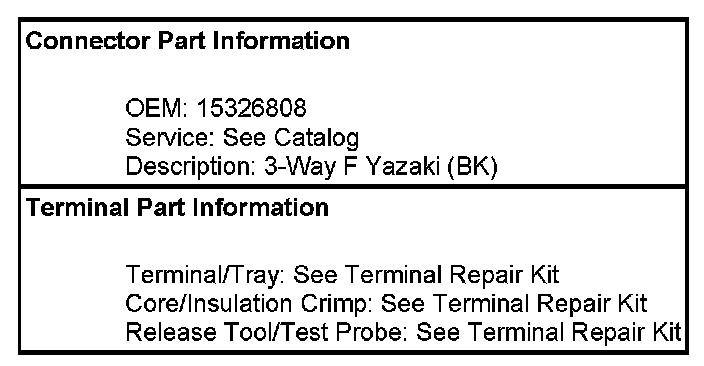

Engine Controls Connector End Views

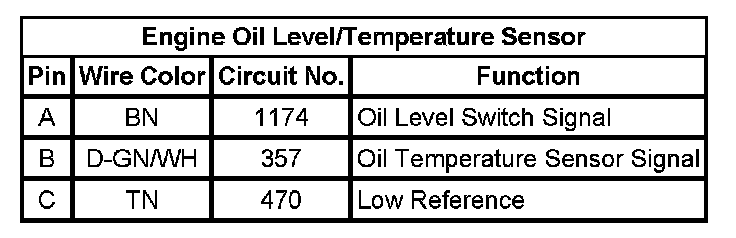

Engine Oil Level/Temperature Sensor
