Cadillac
>>
2007
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vanity Lamp
Vanity Lamp

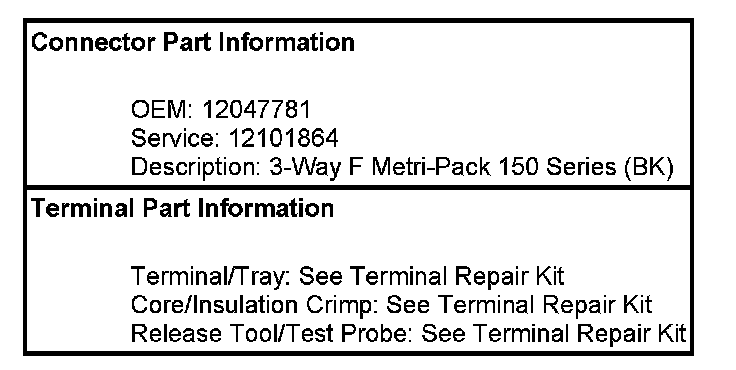

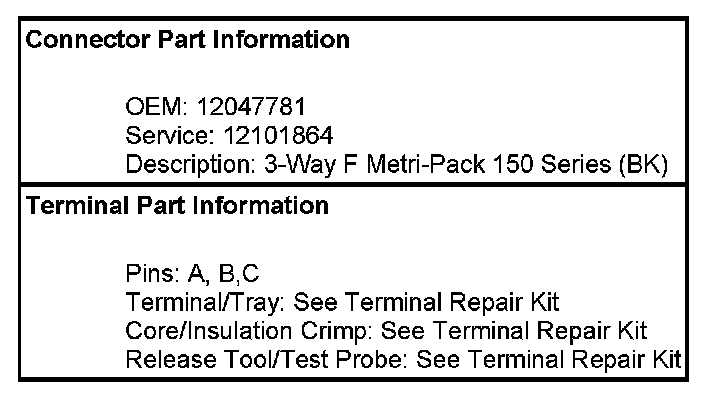

Lighting Systems Connector End Views

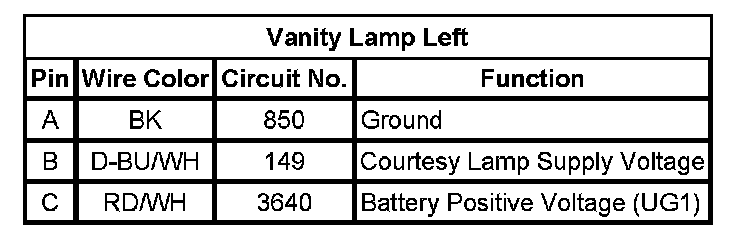

Vanity Lamp
Left

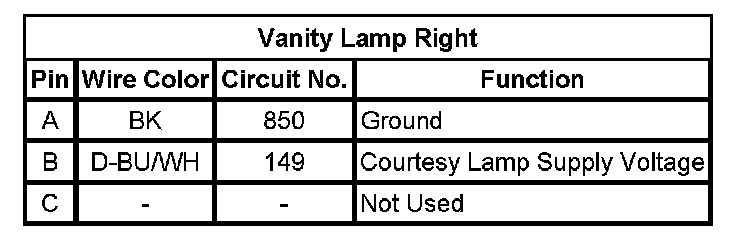

Vanity Lamp
Right
