Home >> Cadillac >> 2006 >> STS-V V8-4.4L SC VIN D >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

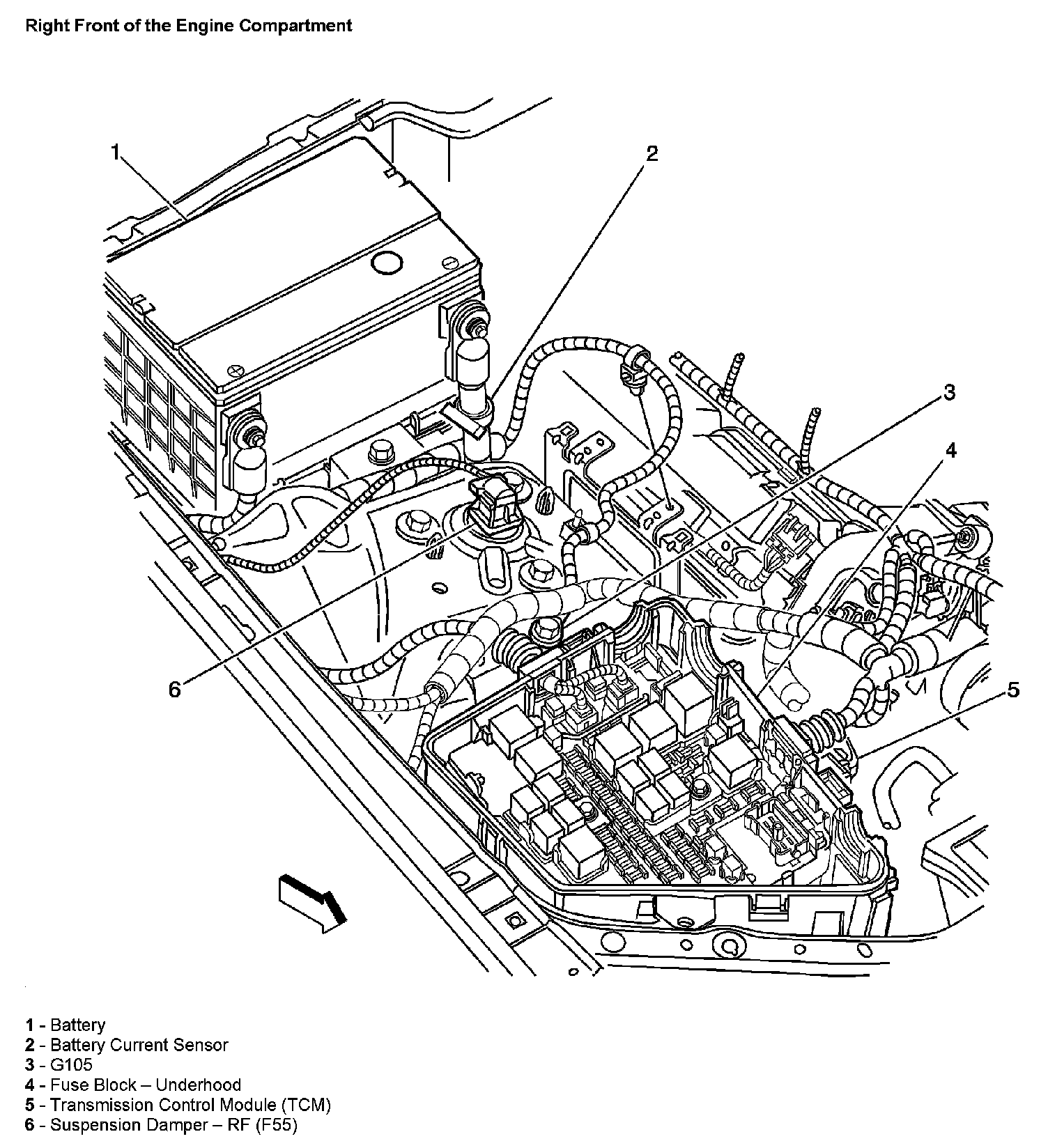

Right Front Of The Engine Compartment:
