Power Steering Fluid Reservoir: Service and Repair

Remote Power Steering Fluid Reservoir Replacement (LH2)
Removal Procedure
1. Remove the air cleaner intake duct.
2. Remove the front air deflector.
3. Place a drain pan under the vehicle.

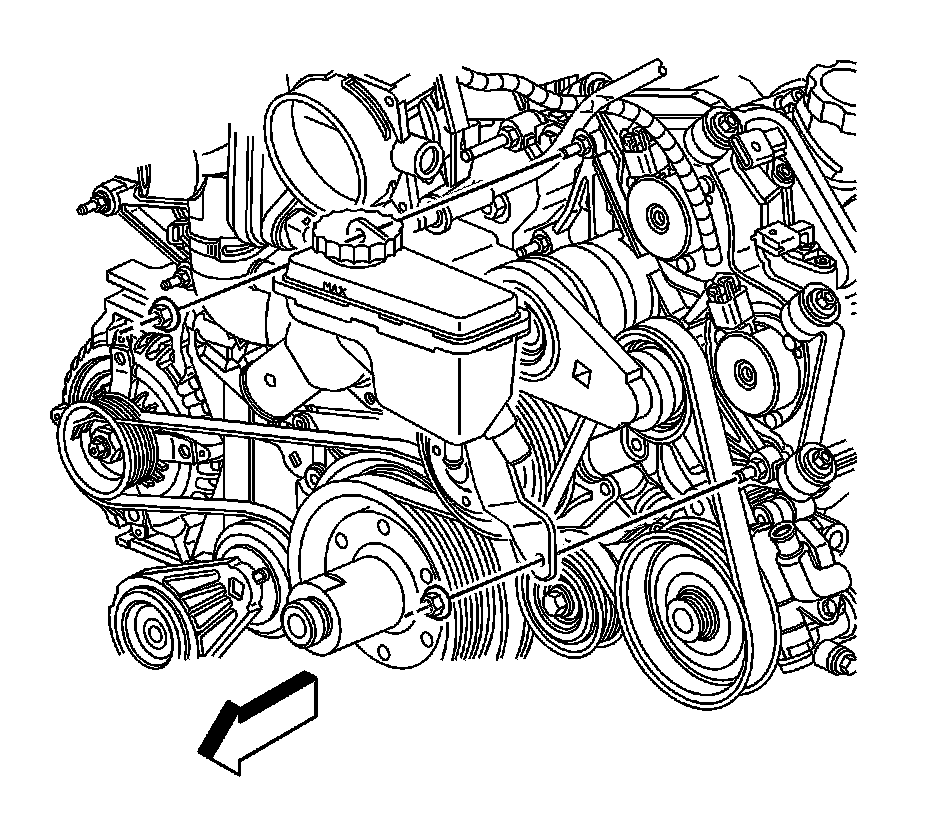

4. Disconnect the power steering cooler hose from the power steering reservoir.





5. Disconnect the power steering reservoir outlet hose from the power steering reservoir.

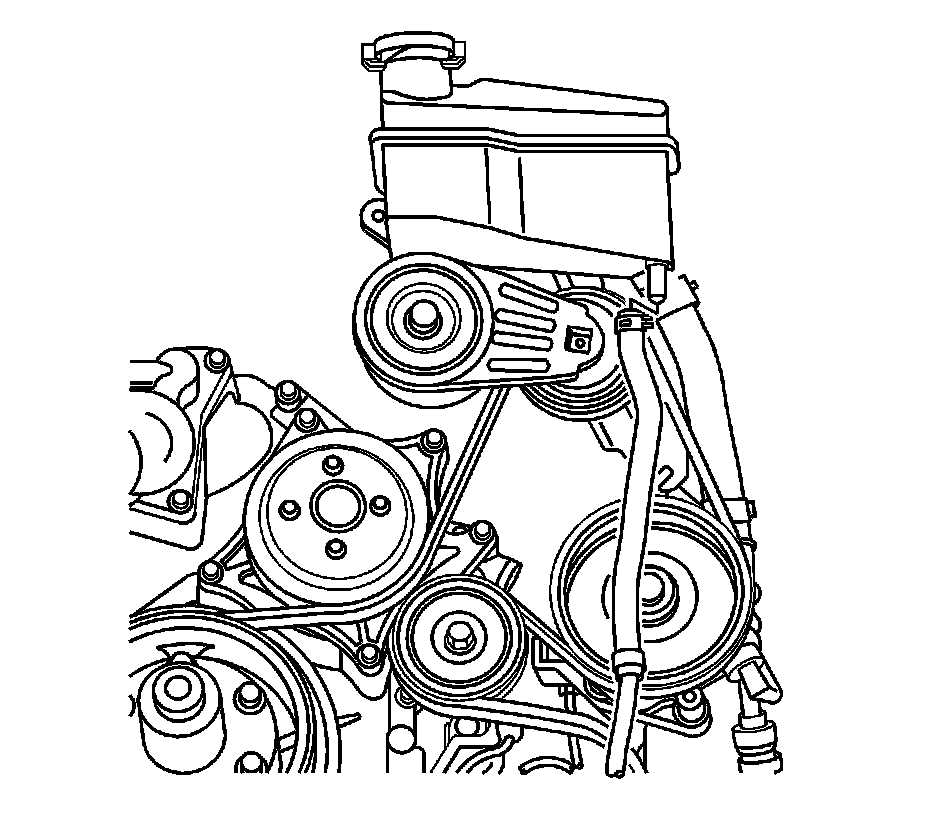

6. Remove the power steering reservoir retaining nuts.
7. Remove the power steering reservoir from the vehicle.

Installation Procedure





1. Install the power steering reservoir to the vehicle.

2. Install the power steering reservoir retaining nuts.
Tighten the nuts to 9 Nm (80 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.






3. Connect the power steering reservoir outlet hose to the power steering reservoir.





4. Connect the power steering cooler hose to the power steering reservoir.
5. Remove the drain pan from under the vehicle.
6. Install the air cleaner intake duct.
7. Bleed the power steering system.
8. Install the front air deflector.
