Power Steering Fluid Cooler: Service and Repair

Power Steering Cooler Replacement (LH2 or LY7 with V92)
Removal Procedure

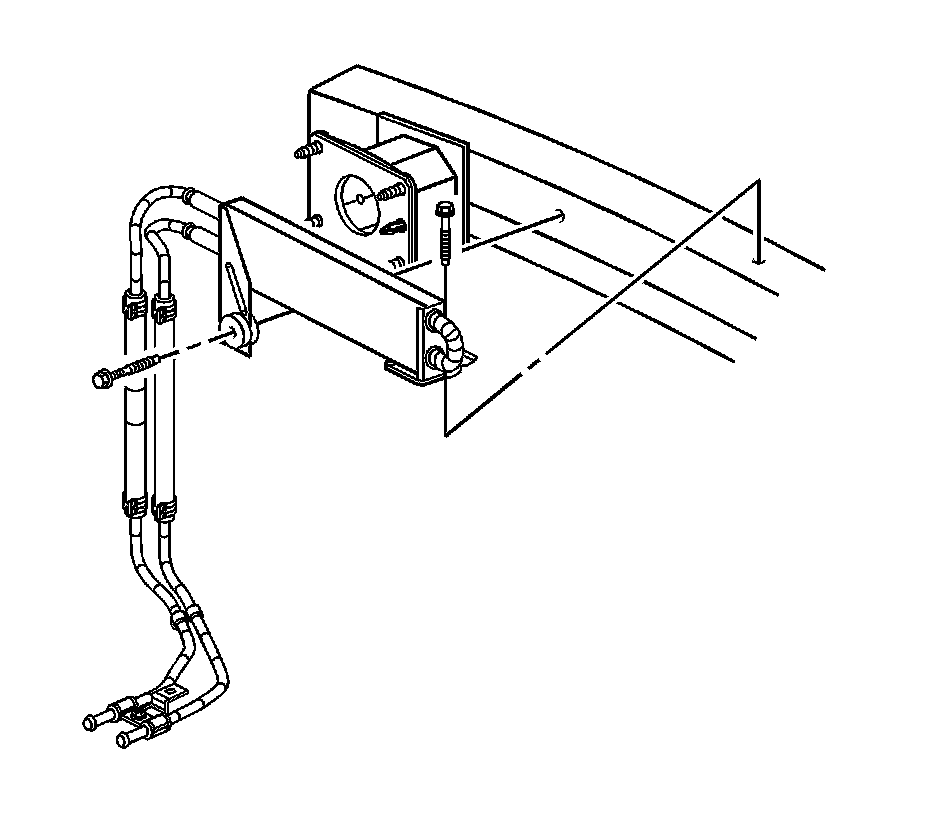

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front air deflector.
3. Install a drain pan under the vehicle.





4. Remove the power steering cooler bolts from the power steering cooler brackets.





5. Disconnect the power steering lines from the power steering cooler.
6. Remove the power steering cooler from the vehicle.

Installation Procedure





1. Install the power steering cooler to the vehicle.
2. Connect the power steering lines to the power steering cooler.





3. Install the power steering cooler bolts to the power steering cooler brackets.
Tighten the bolts to 9 Nm (80 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

4. Remove the drain pan from under the vehicle.
5. Install the front air deflector.
6. Lower the vehicle.
7. Bleed the power steering system.
