Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2006
>>
STS-V V8-4.4L SC VIN D
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C100 - C199
>>
C119
C119

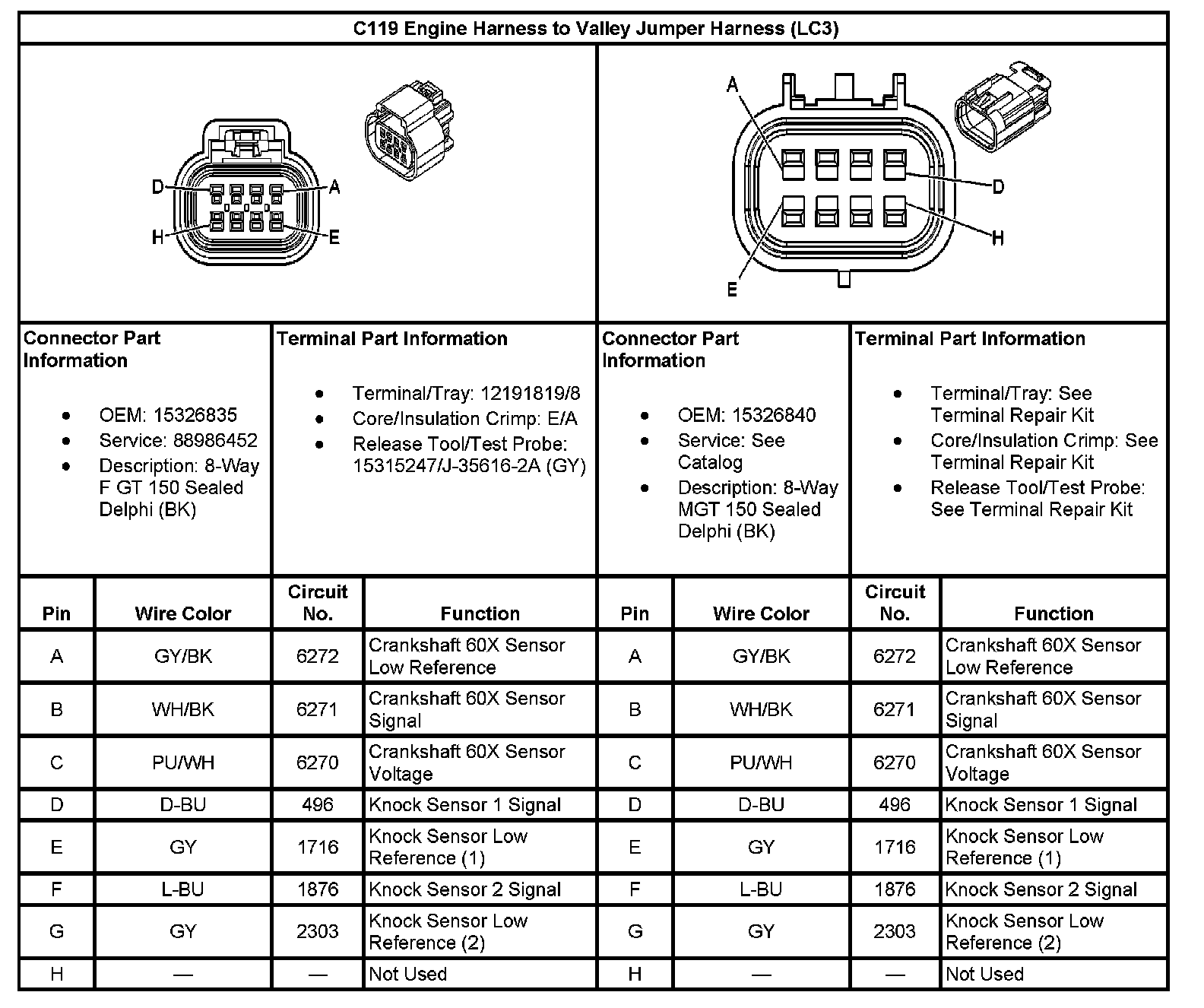

C119 Engine Harness To Valley Jumper Harness:
