Home >> Cadillac >> 2006 >> STS-V V8-4.4L SC VIN D >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> HVAC Control Module - Rear Auxiliary

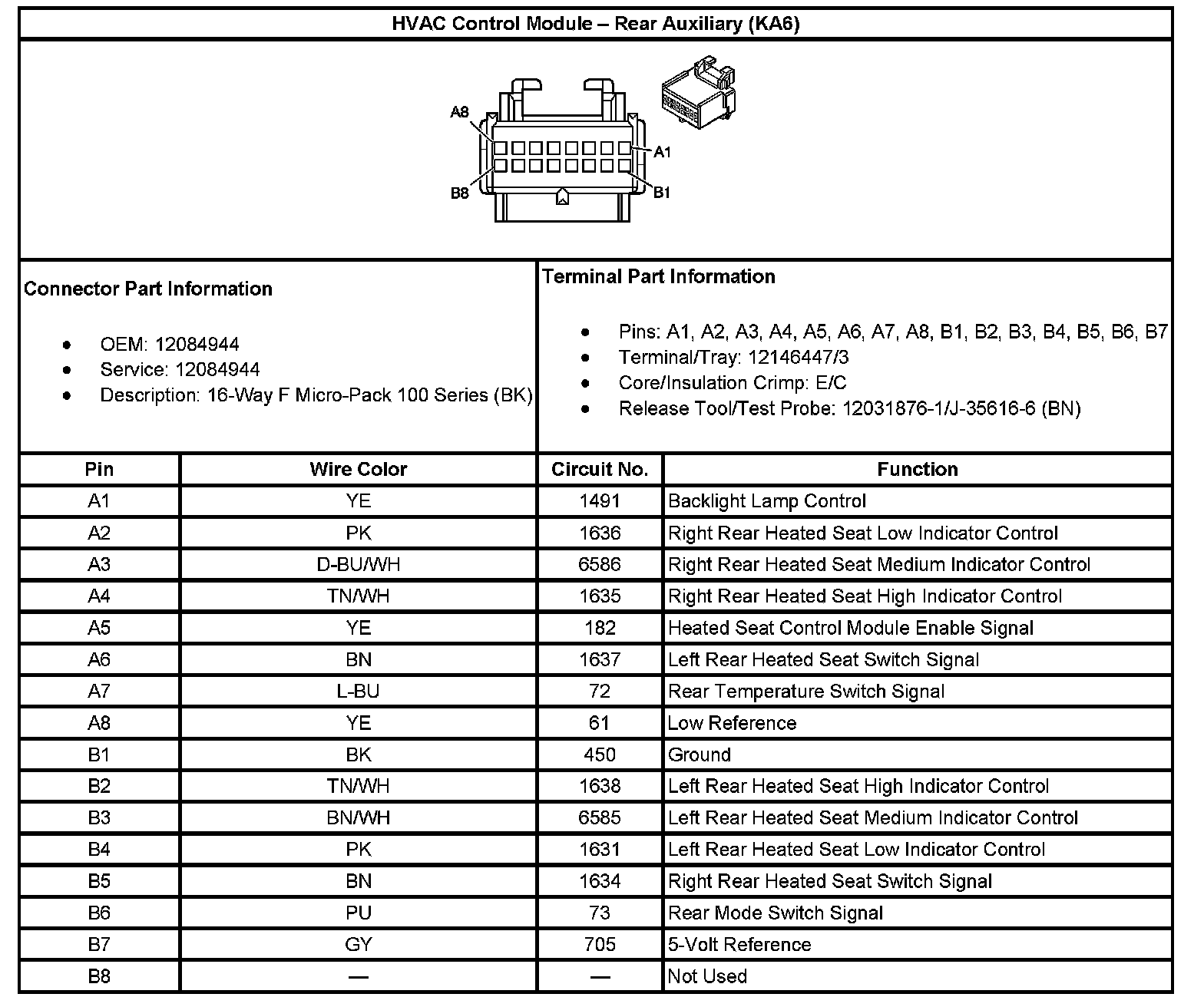

HVAC Control Module - Rear Auxiliary

HVAC Control Module - Rear Auxiliary (With RPO Code KA6):
