Engine Mount Replacement - Left

Engine Mount Replacement - Left

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the left engine mount bracket.

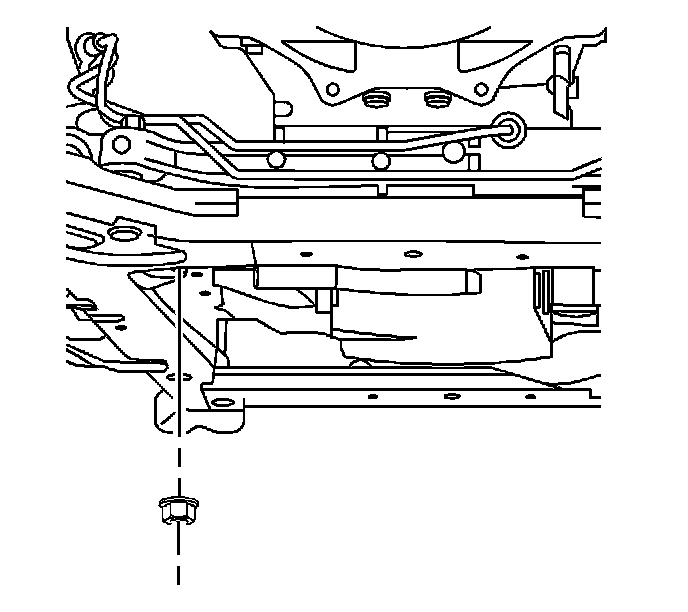

3. Remove the lower engine mount retaining nut.
4. Remove the engine mount from the vehicle.

Installation Procedure





1. Install the engine mount to the vehicle.

Notice: Refer to Fastener Notice .

2. Install the engine mount lower retaining nuts.
^ Tighten the nut to 80 Nm (59 ft. lbs.).
3. Install the left engine mount bracket.
4. Lower the vehicle.
