Engine Mount Bracket Replacement - Left

Engine Mount Bracket Replacement - Left

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the left exhaust manifold.
3. Install a screw jack with a block of wood under the oil pan for support.

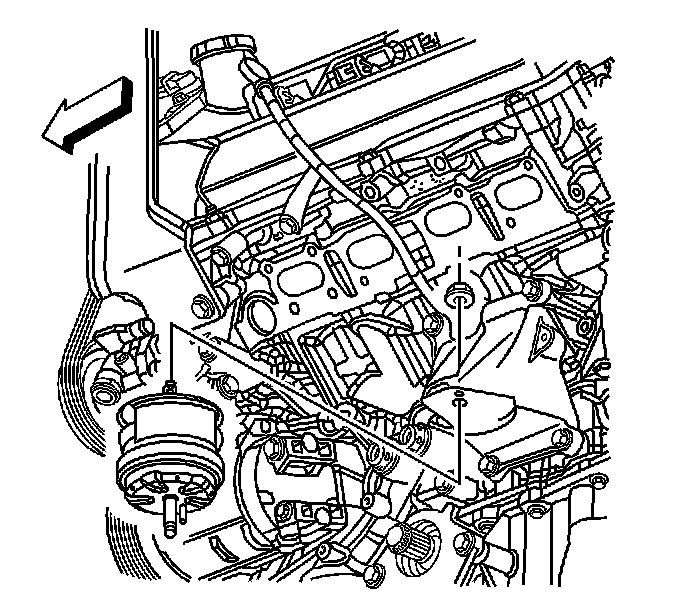

4. Remove the upper engine mount retaining nut.





Important: Ensure not to distort or bend the engine mount heat shield.

5. Remove the left engine mount bracket retaining bolts.
6. Remove the left engine mount bracket.

Installation Procedure





1. Install the left engine mount brackets.

Notice: Refer to Fastener Notice .

2. Install the left engine mount bracket retaining bolts.
^ Tighten the bolts to 60 Nm (44 ft. lbs.).





3. Install the upper engine mount retaining nut.
^ Tighten the nut to 80 Nm (59 ft. lbs.).
4. Remove the screw jack.
5. Install the left exhaust manifold.
6. Lower the vehicle.
